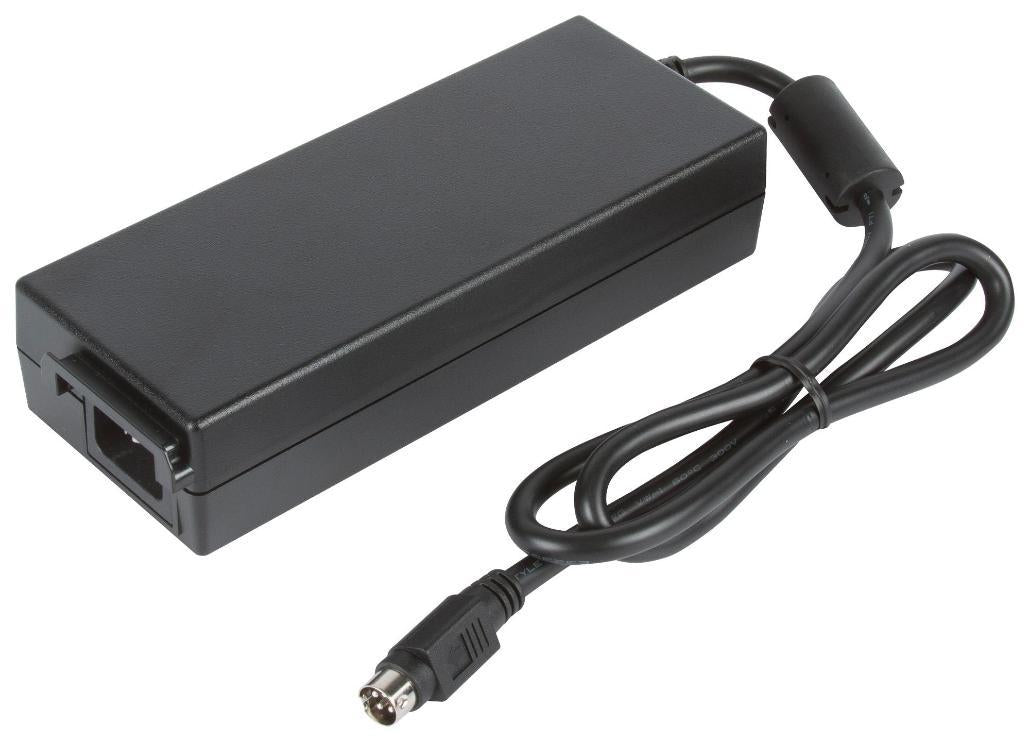

AC/DC Enclosed Power Supply, Medical Approved, 24V, 5A, 120W, 2.5mm Plug - ALM120PS24
AC/DC Enclosed Power Supply, Medical Approved, 24V, 5A, 120W, 2.5mm Plug - ALM120PS24
Regular price
£87.69 GBP
Regular price
Sale price
£87.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
ALM120PS24 is an ALM120 series AC-DC power supply. This medical external power supply is fully approved to international medical and IT safety standards. It has been designed with very high efficiency and low standby power, enabling it to meet the latest environmental legislation. The unit has a fully sealed enclosure complying with IP32 and a smooth surface finish making it easier to wipe down in a clinical setting. Certified by UL62368-1, EN62368-1, IEC60950-1 and IEC62368-1, CSA C22.2 No. 60601, EN60601-1, IEC60601-1.
Features
- Input voltage range from 80 to 264VAC, output voltage is 24V
- Output current is 5A, output power is 120W, efficiency is 93%
- Energy efficiency level VI and EU CoC tier 2 compliant
- 4th edition medical EMC, class I version
- <0.15W standby power, low earth leakage current
- Switching frequency range from 45 to 140KHz (PFC), 85 to 190KHz (main converter)
- Isolation is 4000VAC (input to output, 2 x MOPP)
- 3 year warranty
- Operating temperature range from 0 to +60°C
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Medical |
| No. of Outputs | 1 Output |
| Output Power Max | 120W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 5A |
| Output Connector | 4 Way DIN |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 80V AC to 264V AC |
| Product Range | ALM120 Series |
| Plug Type | Mains Plug Sold Separately |
| Country of Origin: | Vietnam |
