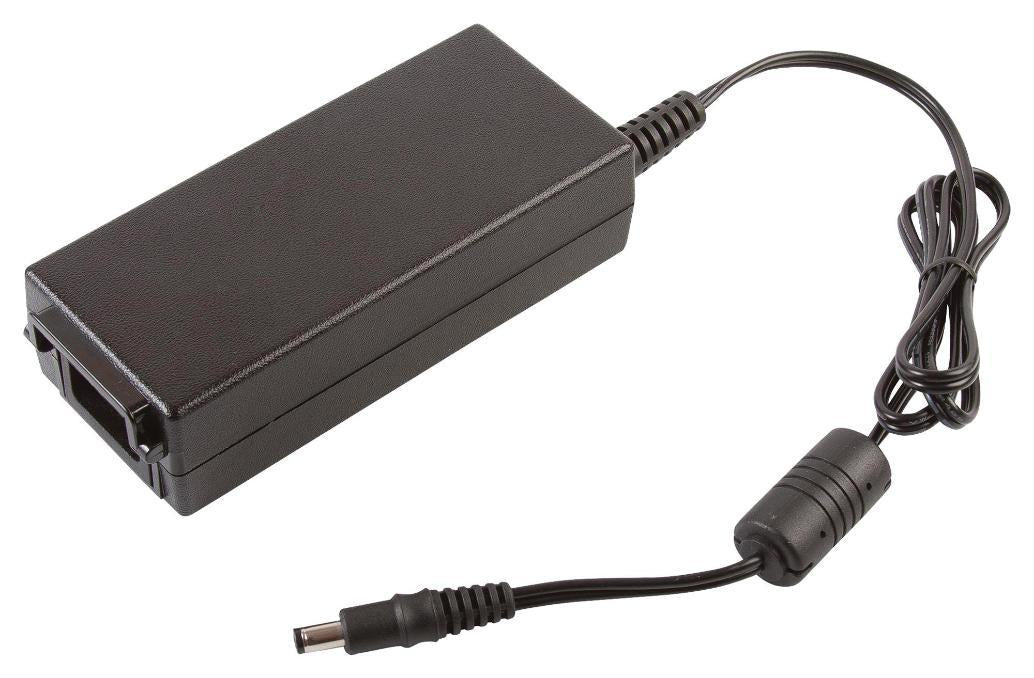

AC/DC Enclosed Power Supply, Medical Approved, 24V, 2.7A, 65W, 2.5mm Plug - ALM65US24
AC/DC Enclosed Power Supply, Medical Approved, 24V, 2.7A, 65W, 2.5mm Plug - ALM65US24
Regular price
£51.89 GBP
Regular price
Sale price
£51.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
ALM65 series is a desktop AC-DC power supply in a sealed IP32 case for ITE and medical applications. The ALM65 series of medical external power supplies is fully approved to international medical safety standards. It has been designed with very high efficiency and low standby power, enabling it to meet the latest environmental legislation. The unit has a fully sealed enclosure complying with IP32 and a smooth surface finish making it easier to wipe down in a clinical setting. Safety approvals are UL62368-1, EN62368-1, IEC60950-1 & IEC62368-1, ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601, EN60601-1, IEC60601-1, CCC, KC & RCM.
Features
- Energy efficiency level VI, 4th Edition medical EMC
- IP32 environmental rating
- Low earth leakage current
- 3 year warranty
- Dimension is 125.5 x 55.5 x 33.5mm, output power is 65W
- Input voltage is 80 to 264VAC (derate linearly from 100% load at 90VAC to 80% load at 80VAC)
- Output voltage is 24V, input frequency is 47 to 63Hz
- Output current is 2.7A, total regulation is ±5%
- Operating temperature is 0 to 60°C (derate from 100% load at 40°C to 50% load at 60°C)
- Efficiency is 88%
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Medical |
| No. of Outputs | 1 Output |
| Output Power Max | 65W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 2.7A |
| Output Connector | Barrel Plug Center Positive 2.5mm x 5.5mm x 9.5mm |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 80V AC to 264V AC |
| Product Range | ALM65 Series |
| Plug Type | Mains Plug Sold Separately |
| Country of Origin: | Vietnam |
