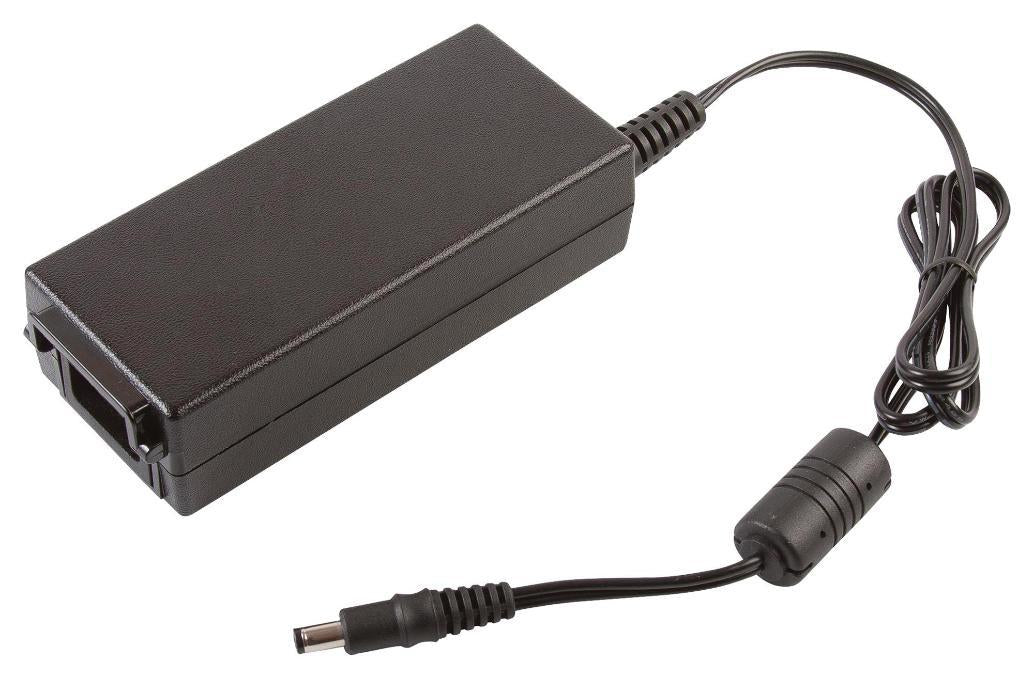

AC/DC Enclosed Power Supply, Medical Approved, 12V, 5.4A, 65W, 2.5mm Plug - ALM65US12C2-8
AC/DC Enclosed Power Supply, Medical Approved, 12V, 5.4A, 65W, 2.5mm Plug - ALM65US12C2-8
Regular price
£45.19 GBP
Regular price
Sale price
£45.19 GBP
Unit price
/
per
The ALM65 series of medical external power supplies is fully approved to international medical safety standards. It has been designed with very high efficiency and low standby power, enabling it to meet the latest environmental legislation. The unit has a fully sealed enclosure complying with IP32 and a smooth surface finish making it easier to wipe down in a clinical setting.
Features
- Energy Efficiency Level VI
- Medical and ITE Safety Approval
- 4th Edition Medical EMC
- Less Than 0.21W No Load Input Power
- Operating Temperature 0°C to 60°C
- Low Earth Leakage Current
- IP32 Environmental Rating
- Class II Construction
- See Technical Note for information about XP Power's plans for the UKCA Marking
Specifications | |
---|---|
Power Supply Applications | ITE & Medical |
No. of Outputs | 1 Output |
Output Power Max | 65W |
Output Voltage - Output 1 | 12VDC |
Output Current - Output 1 | 5.4A |
Output Connector | Barrel Plug Center Positive 2.5mm x 5.5mm x 9.5mm |
Power Supply Output Type | Fixed |
Input Voltage VAC | 80V AC to 264V AC |
Product Range | ALM65 Series |
Plug Type | IEC 60320 C8 |
Country of Origin: | Vietnam |
