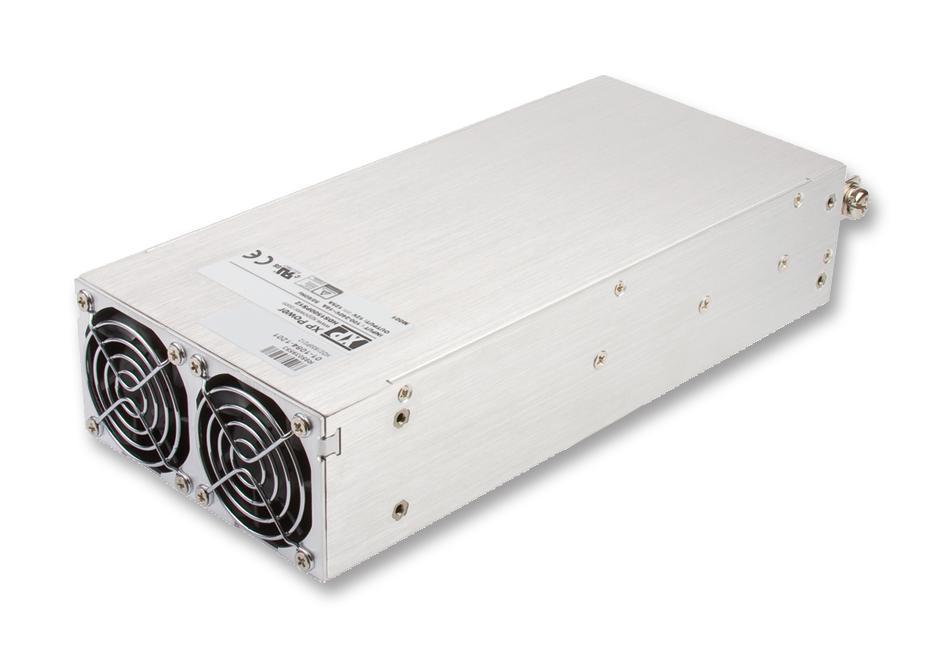

AC/DC Enclosed Power Supply, 60V, 25A, 1.5kW - HDS1500PS60
AC/DC Enclosed Power Supply, 60V, 25A, 1.5kW - HDS1500PS60
Regular price
£1,040.29 GBP
Regular price
Sale price
£1,040.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The HDS1500 series offers users both output voltage and output current programming (0 - 105%) via resistance, voltage or I2C bus in a very high efficiency, high power density 3kW chassis mount package. Measuring just 12.32" x 2.5" x 5", the HDS1500 also features active current sharing, remote on/off, remote sense and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5V at 0.5A or 9V at 0.3A.
Features
- High Efficiency, up to 92%
- High Power Density
- Programmable Output Voltage (0-105%)
- Programmable Output Current (0-105%)
- Parallel Operation
- Fully Featured Signals & Controls
- See Technical Note for information about XP Power's plans for the UKCA Marking
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1Outputs |
Output Power Max | 1.5kW |
Output Voltage - Output 1 | 60VDC |
Output Current - Output 1 | 25A |
Input Voltage VAC | 90V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Product Range | HDS1500 Series |
Country of Origin: | Taiwan |
