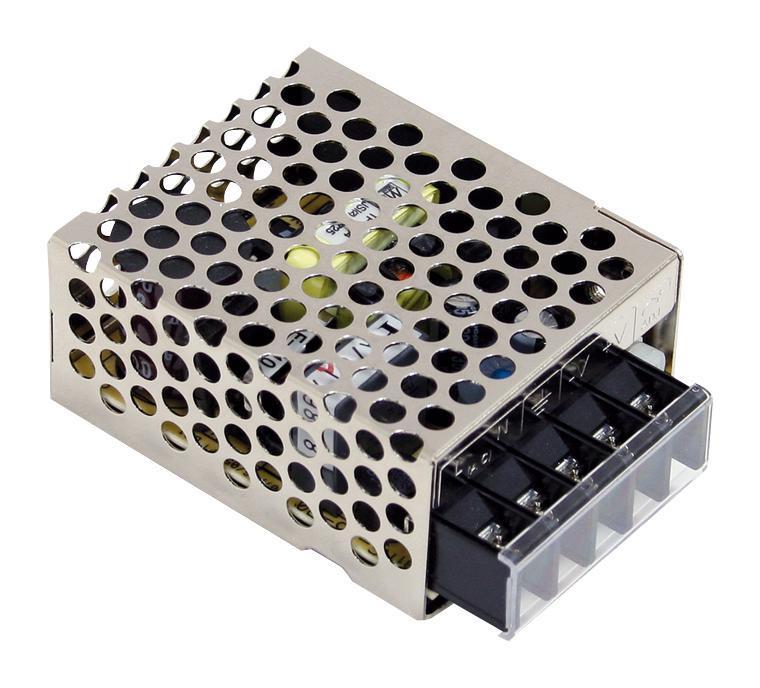

AC/DC Enclosed Power Supply, 5V, 3A, 15W - RS-15-5
AC/DC Enclosed Power Supply, 5V, 3A, 15W - RS-15-5
Regular price
£15.69 GBP
Regular price
Sale price
£15.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
RS-15-5 is RS- 15 series 15W single output switching power supply. It has universal AC input / full range and cooling by free air convection. All using 105°C long life electrolytic capacitors. It can withstand 300VAC surge input for 5sec. It includes short circuit, over load, overvoltage, overtemperature protection. Approved by UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1, BIS IS13252, 2010/IEC 60950-1, 2005.
Features
- Output DC voltage is 5V, output rated current is 3A, output rated power is 15W
- Typical efficiency is 77%
- Input voltage range from 85 to 264VAC, 120 to 370VDC
- Universal AC input / full range, cooling by free air convection
- LED indicator for power on, 100% full load burn-in test
- No load power consumption<0.5W, withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
- Working temperature range from -20 to +70°C
- Dimension is (L x W x H) 62.5 x 51 x 28mm
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1Outputs |
| Output Power Max | 15W |
| Output Voltage - Output 1 | 5VDC |
| Output Current - Output 1 | 3A |
| Input Voltage VAC | 85V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | RS-15 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
