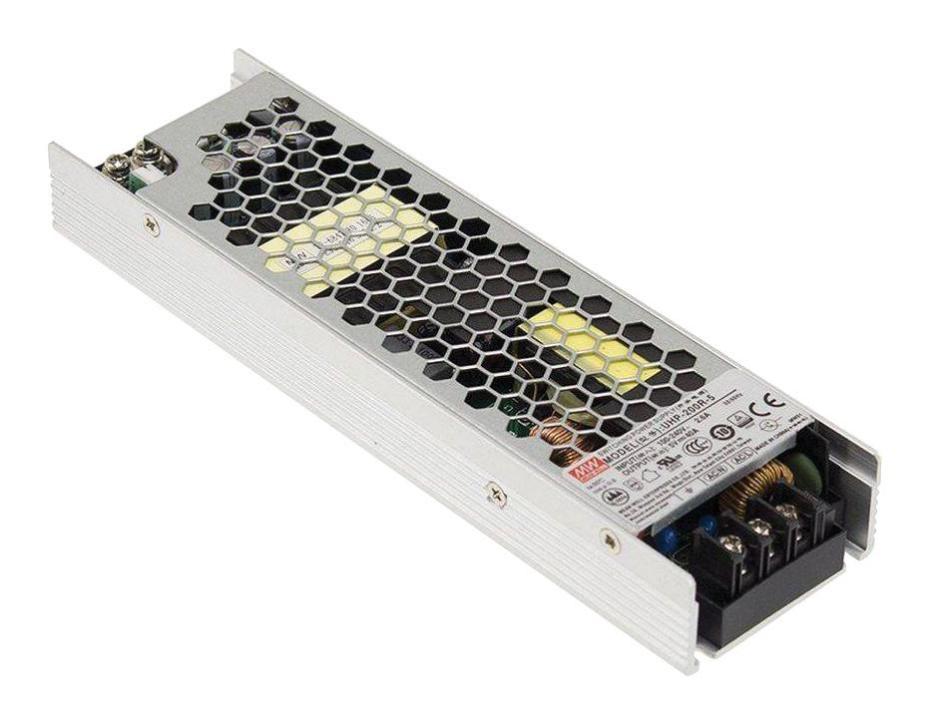

AC/DC Enclosed Power Supply, 4.2V, 40A, 168W - UHP-200-4.2
AC/DC Enclosed Power Supply, 4.2V, 40A, 168W - UHP-200-4.2
Regular price
£88.79 GBP
Regular price
Sale price
£88.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
UHP-200 series is a 200W single-output slim type power supply with 26mm of low profile design. Adopting the full range 9O-264VAC input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 94%, that the whole series operates from -30°C to +70°C under air convection without fan. UHP-200 has the complete protection functions and 5G anti-vibration capability. It complies with the international safety regulations such as TUV EN60950-1, EN60335-1, UL60950-1 and GB4943. UHP-200 series serves as a high performance power supply solution for various industrial applications.
Features
- Slim and low profile (26mm)
- Fanless design, 200W convection
- Withstand 300V AC surge input for 5 seconds
- Built-in active PFC function
- 150% peak load capability (100ms)
- -30 to +70°C working temperature
- Protections: Short circuit / Overload / Over voltage / Over temperature
- DC OK active signal and redundant function(option)
- Operating altitude up to 5km
- LED indicator for power on
- 3-years warranty
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Household |
| No. of Outputs | 1Outputs |
| Output Power Max | 168W |
| Output Voltage - Output 1 | 4.2VDC |
| Output Current - Output 1 | 40A |
| Input Voltage VAC | 90V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | UHP-200 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
