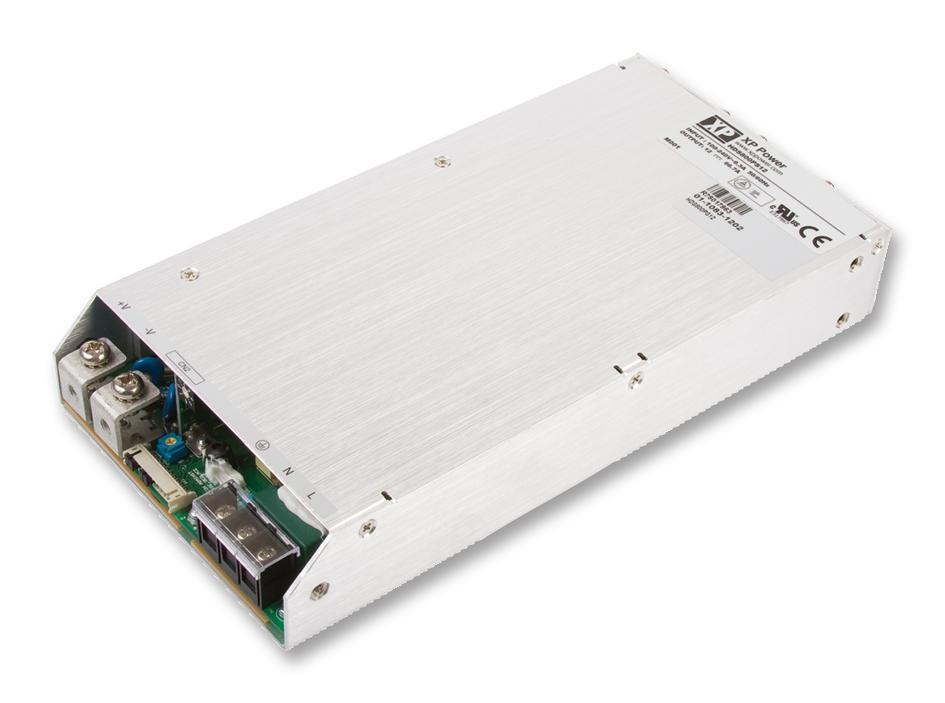

AC/DC Enclosed Power Supply, 36V, 22.3A, 800W - HDS800PS36
AC/DC Enclosed Power Supply, 36V, 22.3A, 800W - HDS800PS36
Regular price
£435.79 GBP
Regular price
Sale price
£435.79 GBP
Unit price
/
per
The HDS800 series offers users both output voltage and output current programming (0 - 105%) via resistance, voltage or I2C bus in a very high efficiency, high power density 800W chassis mount package. Measuring just 9.8" x 5" x 1.6", the HDS800 also features active current sharing, remote on/off, remote sense and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5V at 0.5A or 9V at 0.3A
Features
- High Efficiency, up to 92%
- High Power Density
- Programmable Output Voltage (0-105%)
- Programmable Output Current (0-105%)
- Parallel Operation
- Fully Featured Signals & Controls
- See Technical Note for information about XP Power's plans for the UKCA Marking
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1Outputs |
Output Power Max | 800W |
Output Voltage - Output 1 | 36VDC |
Output Current - Output 1 | 22.3A |
Input Voltage VAC | 90V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Product Range | HDS800 Series |
Country of Origin: | Taiwan |
