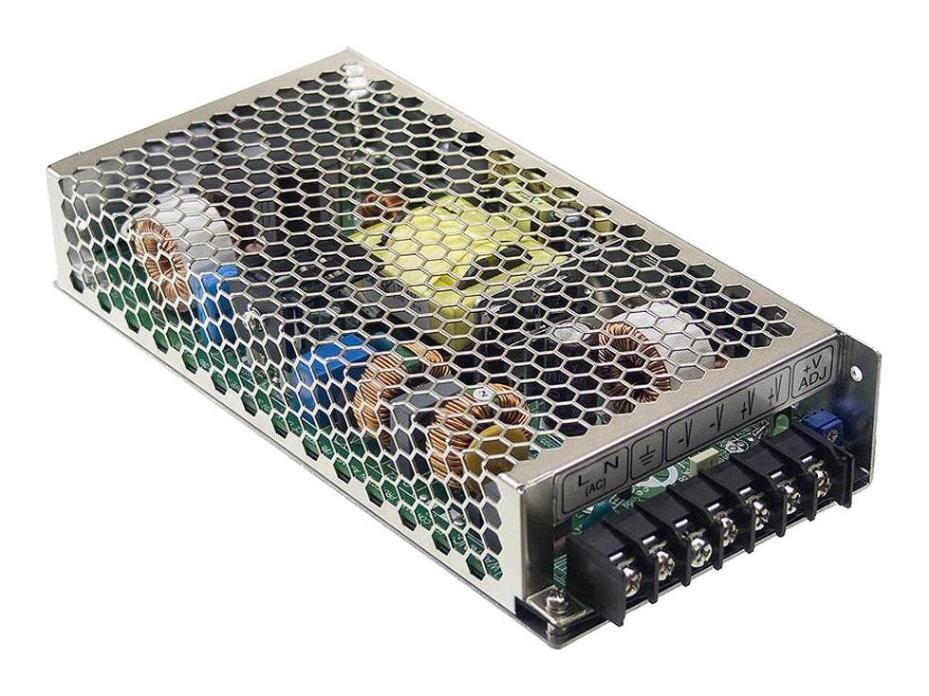

AC/DC Enclosed Power Supply, 24V, 8.4A, 201.6W - HRP-200-24
AC/DC Enclosed Power Supply, 24V, 8.4A, 201.6W - HRP-200-24
Regular price
£109.59 GBP
Regular price
Sale price
£109.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Enclosed type switching power supplies possess a metal or plastic case for covering their internal PCB and will be installed inside the case of the end system. Mean Well's enclosed type power supplies include two different groups of power supplies, with built-in fan and without built-in fan, depending on their rated power or design concept.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF >0.95
- High efficiency up to 89%
- Withstand 300V AC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- 1U low profile 38mm
- Built-in remote sense function
- 5-years warranty
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1Outputs |
| Output Power Max | 201.6W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 8.4A |
| Input Voltage VAC | 85V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | HRP-200 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
