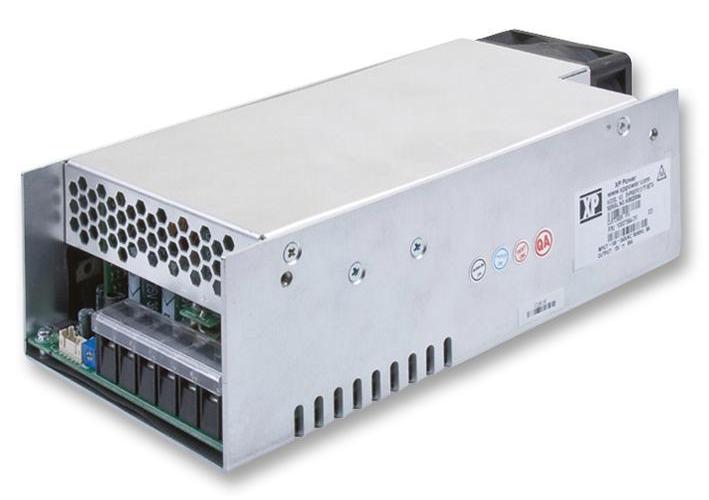

AC/DC Enclosed Power Supply, 24V, 27A, 655W - SHP650PS24-EF
AC/DC Enclosed Power Supply, 24V, 27A, 655W - SHP650PS24-EF
The SHP650 AC-DC power supply provides upto 650W of output power in three mechanical packages to provide installation flexibility in a range of industrial applications. The unit comprises of a main output with voltages from 12V to 48VDC and two peripheral outputs providing a 12VDC fan supply and a 5VDC standby supply which can be utilitsed with the signals and control features of the unit to provide detection of loss of AC input and remote on/off control. Multiple units can used in parallel via the current share facility, providing higher power solutions. Inherently low earth leakage current, and conducted EMC compliance to Class B also simplify higher power system design. Packaged in a compact 8" (203mm) x 4" (102mm) x 2.6" (65mm) and carrying IEC60950 family safety approvals, the SHP650 has a load dependant variable speed fan is fully protected with overtemperature shutdown and provides full power from -20°C to 50°C and 50% power at 70°C
Features
- Rugged Industrial Construction
- Variable Fan Speed for Noise Reduction
- Operation Temperature -40°C to 70°C
- AC OK, Remote On/Off and Active Current Share
- 5V Standby
- Screw Terminals
- SEMI F47 Compliant
- See Technical Note for information about XP Power's plans for the UKCA Marking
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1Outputs |
Output Power Max | 655W |
Output Voltage - Output 1 | 24VDC |
Output Current - Output 1 | 27A |
Output Voltage - Output 2 | 12VDC |
Output Current - Output 2 | 500mA |
Output Voltage - Output 3 | 5VDC |
Output Current - Output 3 | 200mA |
Input Voltage VAC | 80V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Product Range | SHP Series |
Country of Origin: | China |
