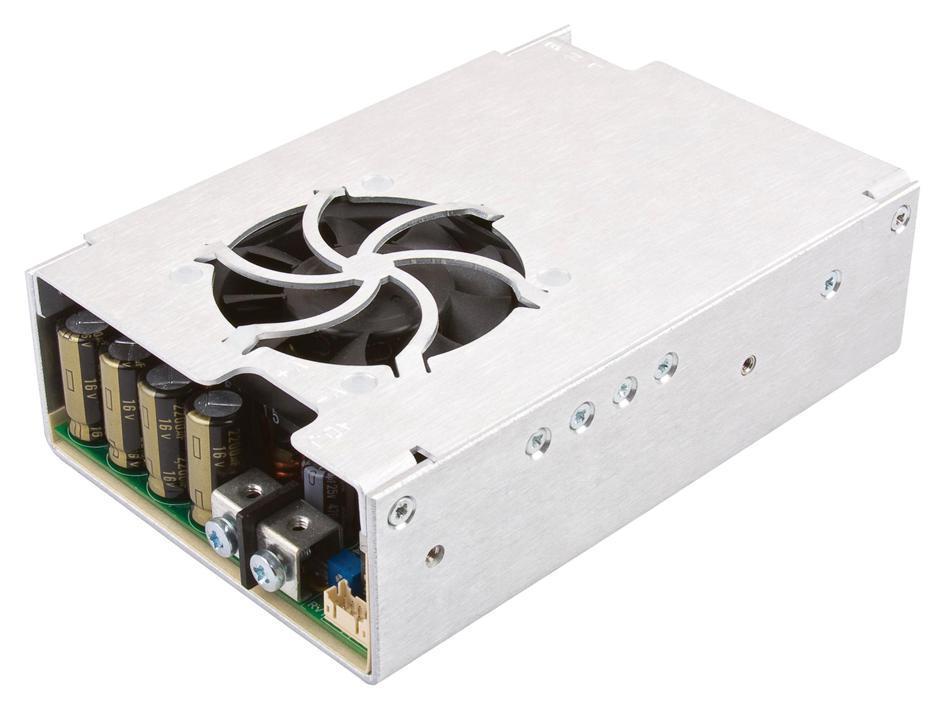

AC/DC Enclosed Power Supply, 24V, 16.6A, 400W - FCM400PS24
AC/DC Enclosed Power Supply, 24V, 16.6A, 400W - FCM400PS24
Regular price
£378.89 GBP
Regular price
Sale price
£378.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The FCM400 AC-DC power supply provides upto 400W continuous and 600W peak output power for up to 0.5 seconds. Packaged in a compact 6" (152mm) x 4" (102mm) x 1.9" (49mm) and certified to IEC60950 & IEC60601 family safety approvals, the FCM400 can be easily integrated into a wide range of both industrial and medical applications. A low noise fan allows quiet operation at full power from -10°C to 50°C and 50% power at 70°C. The unit comprises of a main output with voltages from 12V to 48VDC and a peripheral output providing a 5VDC standby supply which can be utilitsed with the signals and control features of the unit to provide detection of loss of AC input and remote on/off control.
Features
- IT & Medical 3rd Edition Safety Approvals
- 2 x MOPP with Risk Management File
- 400 W Continuous, 600 W Peak
- 80 V - 275 VAC Operation
- AC OK and Remote On/Off
- Low Noise Fan
- 5 V Standby
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Medical |
| No. of Outputs | 1Outputs |
| Output Power Max | 400W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 16.6A |
| Input Voltage VAC | 80V AC to 275V AC |
| Power Supply Output Type | Fixed |
| Product Range | FCM400 Series |
| Country of Origin: | Vietnam |
