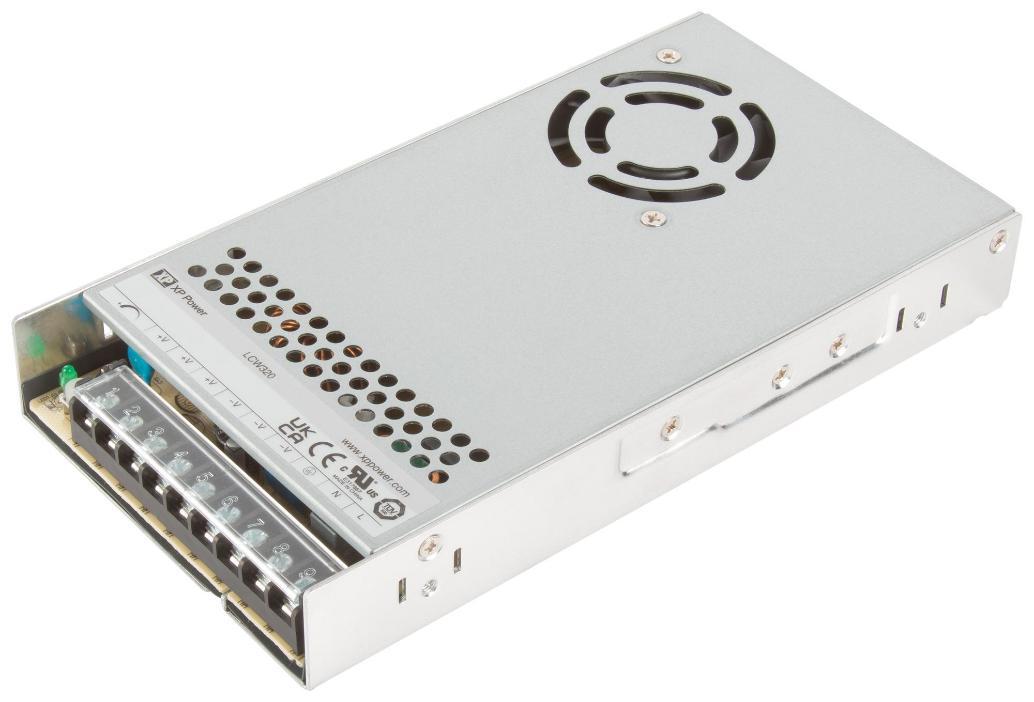

AC/DC Enclosed Power Supply, 24V, 13.4A, 320W - LCW320PS24
AC/DC Enclosed Power Supply, 24V, 13.4A, 320W - LCW320PS24
Regular price
£57.29 GBP
Regular price
Sale price
£57.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
LCW320 series regulated output fan cooled AC to DC power supplies are designed to provide a cost effective solution for industrial electronics and technology applications. Features include wide range AC input from 85-305VAC, active PFC, output voltage adjustment, a power 'ON' LED, low stand-by power consumption, output short circuit protection, overcurrent, overload and overvoltage protection. Applications include auxiliary power sources, security installations, lighting control, smart home or office control systems, ticketing and vending applications. Certified by UL UL62368-1, EN EN62368-1, CE and UKCA.
Features
- 320W fan cooled
- Integrated connector cover
- ITE and industrial approvals
- Class B conducted and radiated emissions
- Output voltage trim, switching frequency of 65KHz
- Efficiency of 88%
- Conformal coating option
- Operating temperature range from -30°C to +70°C
- 3 year warranty, aluminium chassis with vented galvanized steel cover (AL1100 and SGCC)
- Dimension is 8.46" x 4.53" x 1.18" (215 x 115 x 30mm)
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Industrial |
| No. of Outputs | 1Outputs |
| Output Power Max | 320W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 13.4A |
| Input Voltage VAC | 85V AC to 305V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | LCW320 Series |
| Country of Origin: | China |
