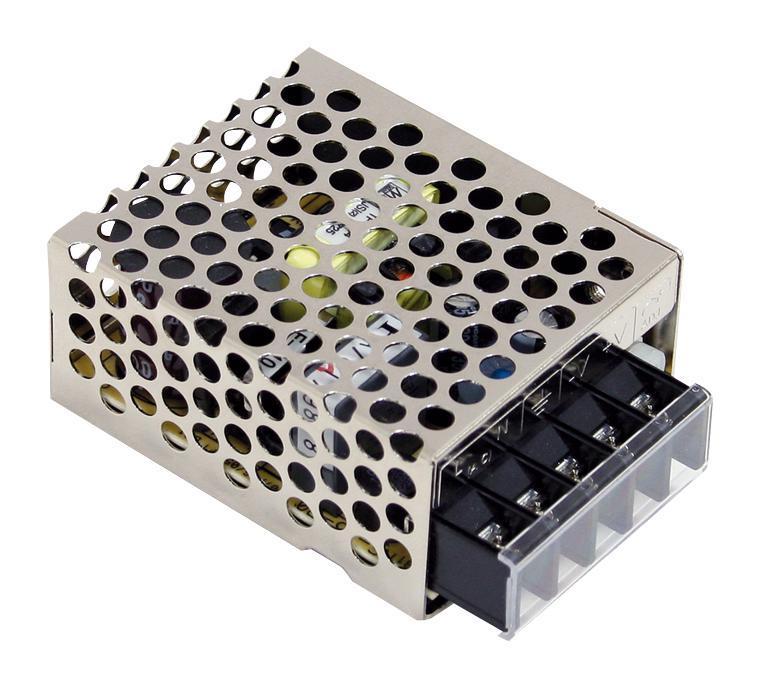

AC/DC Enclosed Power Supply, 24V, 0.625A, 15W - RS-15-24
AC/DC Enclosed Power Supply, 24V, 0.625A, 15W - RS-15-24
Regular price
£15.89 GBP
Regular price
Sale price
£15.89 GBP
Unit price
/
per
RS-15-24 is a RS-15 series 15W single output switching power supply. It features short circuit / Overload / Over voltage / Over temperature protection.
Features
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- No load power consumption<0.5W
- All using 1050C long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 700C
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1Outputs |
Output Power Max | 15W |
Output Voltage - Output 1 | 24VDC |
Output Current - Output 1 | 625mA |
Input Voltage VAC | 85V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Product Range | RS-15 Series |
Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
Country of Origin: | China |
