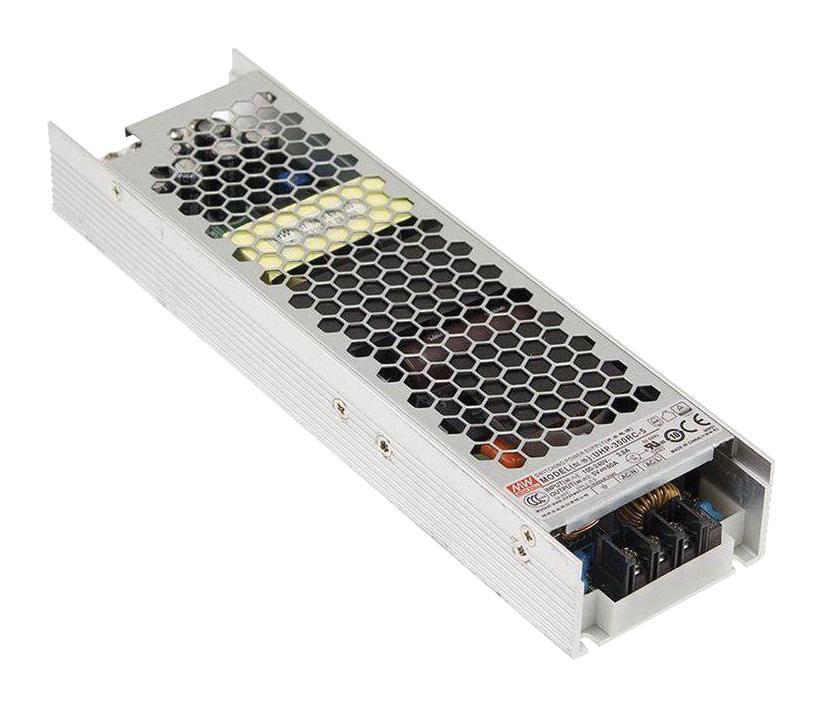

AC/DC Enclosed Power Supply, 12V, 29.2A, 350.4W - UHP-350R-12
AC/DC Enclosed Power Supply, 12V, 29.2A, 350.4W - UHP-350R-12
Regular price
£123.09 GBP
Regular price
Sale price
£123.09 GBP
Unit price
/
per
UHP-350 series is a 350W single-output slim type power supply with 31 mm of low profile design. Adopting the full range 90-264V AC input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 94%, that the whole series operatesfrom -30°C 70°C under air convection without fan. UHP-350 has the complete protection functions and 5G anti-vibration capability It complies with the international safety regulations such as TUV EN60950-1, EN60335-1, UL60950-1 and GB4943. UHP-350 series serves as a high performance power supply solution for various industrial applications.
Features
- Slim Low profile (31mm)
- Fanless design, 350W convection
- Withstand 300V AC surge input for 5 seconds
- Built-in active PFC function
- 150% peak load capability(lOOms)
- -30 to +70°C working temperature
- Protections: Short circuit / Overload / Over voltage / Over temperature
- DC OK active signal and redundant function (option)
- Operating altitude up to 5km
- LED indicator for power on
- 3-years warranty
Specifications | |
---|---|
Power Supply Applications | ITE & Household |
No. of Outputs | 1Outputs |
Output Power Max | 350.4W |
Output Voltage - Output 1 | 12VDC |
Output Current - Output 1 | 29.2A |
Input Voltage VAC | 90V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Product Range | UHP-350 Series |
Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
Country of Origin: | China |
