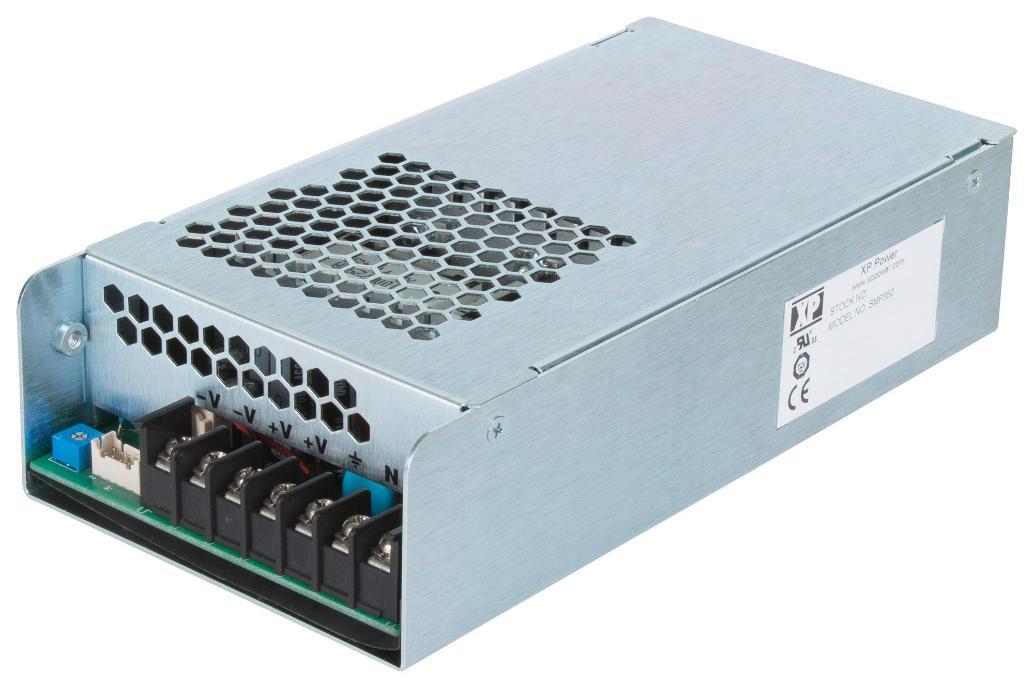

AC/DC Enclosed Power Supply, 12V, 25A, 300W - SMP350PS12
AC/DC Enclosed Power Supply, 12V, 25A, 300W - SMP350PS12
Regular price
£133.29 GBP
Regular price
Sale price
£133.29 GBP
Unit price
/
per
The SMP350 is rated at up to 350W with minimal de-rating at low line. The series offers seven single output models ranging from 12V to 48Vdc and is user adjustable by +/-2%. With a case size of only 7 x 3.6 x 1.7" (177.8 x 91.44 x 43.19mm) including the fan and connectors, the supply has a power density of 8.17W/in3. It has convenient end mounted screw terminals for the input and output connections. Overtemperature, overvoltage, overload and short circuit protection are standard as are isolated remote on/off and remote sense. The SMP350 range meets both EN55011/EN55022 class B conducted and class A radiated emission limits. The range also meets international safety approvals per 60950-1 ITE and 60601-1 medical standards.
Features
- Rugged industrial construction
- Operating temperature range from -40°C to 70°C
- 90% efficiency
- Low leakage current
- 0.02%/°C temperature coefficient
- Integral fan
- See Technical Note for information about XP Power's plans for the UKCA Marking
Specifications | |
---|---|
Power Supply Applications | ITE & Medical |
No. of Outputs | 1Outputs |
Output Power Max | 300W |
Output Voltage - Output 1 | 12VDC |
Output Current - Output 1 | 25A |
Input Voltage VAC | 85V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Product Range | SMP350 Series |
Country of Origin: | China |
