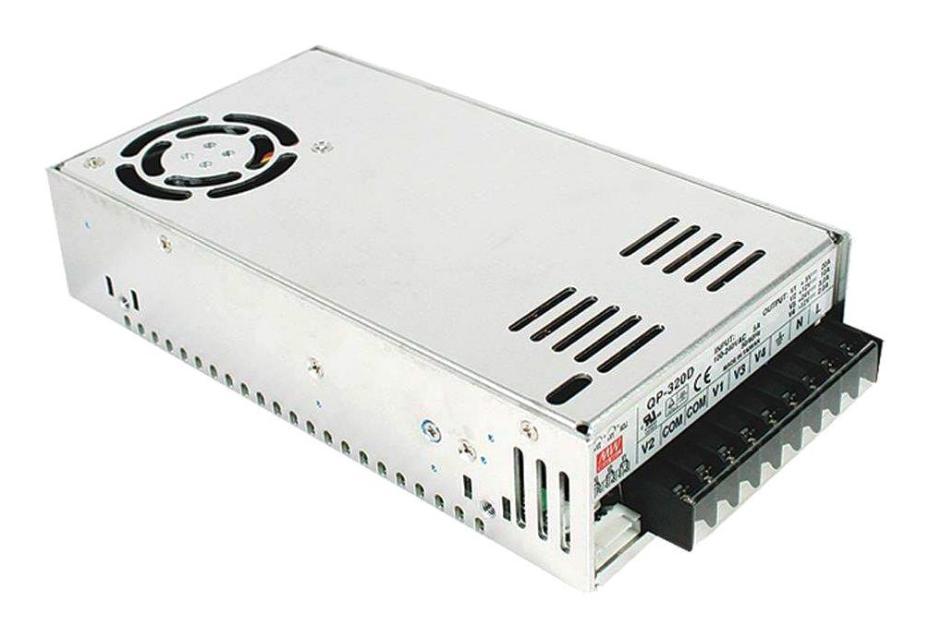

AC/DC Enclosed Power Supply, 12V, 20A, 316W - QP-320D
AC/DC Enclosed Power Supply, 12V, 20A, 316W - QP-320D
Regular price
£208.99 GBP
Regular price
Sale price
£208.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Enclosed type switching power supplies possess a metal or plastic case for covering their internal PCB and will be installed inside the case of the end system. Mean Well's enclosed type power supplies include two different groups of power supplies, with built-in fan and without built-in fan, depending on their rated power or design concept.
Features
- QP-320 series AC-DC Quad output enclosed power supply
- Universal AC input/ full range
- Built-in active PFC function, PF>0.95/230VAC
- Short circuit, over load, over voltage and over temperature protection
- With power good and fail signal output
- Built-in remote sense function for CH1 and CH2
- LED indicator for power on
- 100% full load burn-in test
- CH1 & CH2 can be adjusted from -5% to +10%
- 3 years warranty
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 4Outputs |
| Output Power Max | 316W |
| Output Voltage - Output 1 | 5VDC |
| Output Current - Output 1 | 20A |
| Output Voltage - Output 2 | 12VDC |
| Output Current - Output 2 | 10A |
| Output Voltage - Output 3 | 24VDC |
| Output Current - Output 3 | 3A |
| Output Voltage - Output 4 | -12V |
| Current, Output 4 | 2A |
| Input Voltage VAC | 90V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | QP-320 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
