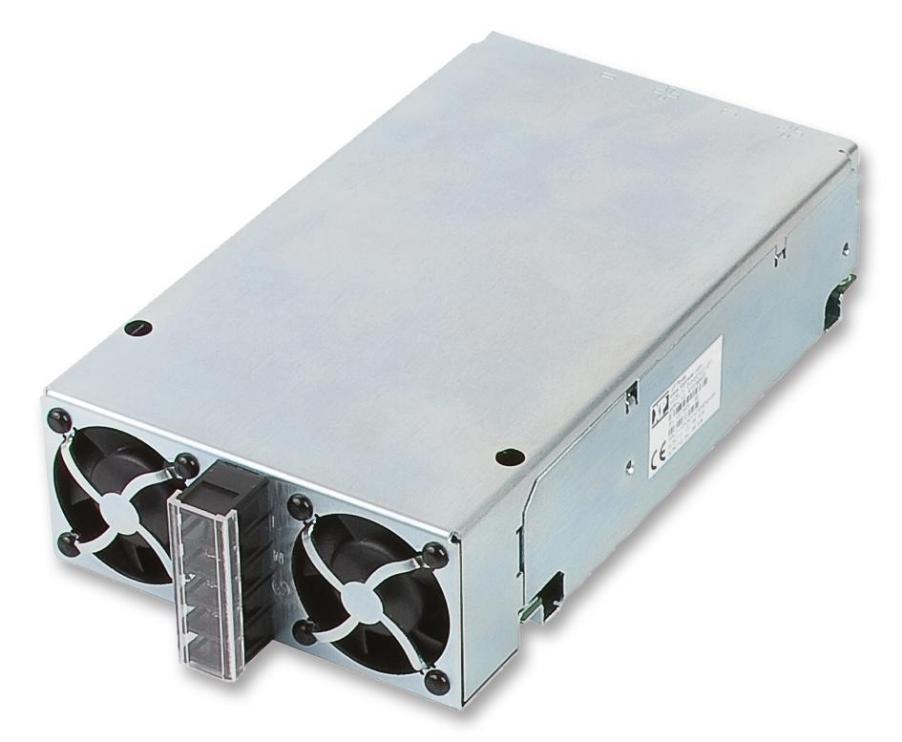

AC/DC Enclosed Power Supply, 12V/16.5A, 24V/8.3A, 354W - EMH350PD21-EF
AC/DC Enclosed Power Supply, 12V/16.5A, 24V/8.3A, 354W - EMH350PD21-EF
Regular price
£486.69 GBP
Regular price
Sale price
£486.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
EMH350 series AC-DC power supply. Safety approvals are EN60601-1, ANSI/AAMI ES60601-1, CSA22.2 No.60601-1 per cUL BF rated, UL60950, IEC62368-1:2014, UL62368-1:2014, CSA C22.2 No62368-1-14, EN62368-1:2014+A11:2017.
Features
- IT and medical (BF) approvals, remote sense, fan supply, AC OK/power fail
- Current share, variable speed fan control
- 3 year warranty, 12V/0.6A fan supply (V3)
- Input voltage is 80-275 VAC, derate output power <90VAC
- Input frequency is 47-63Hz, 5V/2A standby supply
- Continuous, approximately constant current short circuit protection
- Operating temperature is 0°C to 70°C, derate linearly from 50°C at 2.5% /°C to 50% load at 70°C
- Integral end fan version
- Output voltages are 12V (V1), 24V (V2), output currents are 16.5A (V1), 8.3A (V2)
- 354W output power
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Medical |
| No. of Outputs | 2Outputs |
| Output Power Max | 354W |
| Output Voltage - Output 1 | 12VDC |
| Output Current - Output 1 | 16.5A |
| Output Voltage - Output 2 | 24VDC |
| Output Current - Output 2 | 8.3A |
| Input Voltage VAC | 80V AC to 275V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | EMH Series |
| Country of Origin: | Vietnam |
