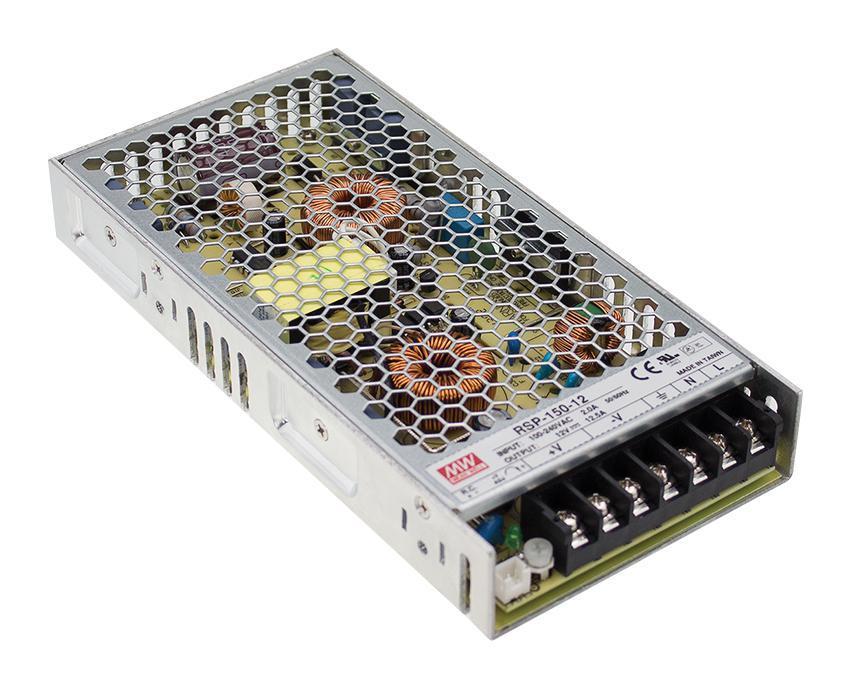

AC/DC Enclosed Power Supply, 12V, 12.5A, 150W - RSP-150-12
AC/DC Enclosed Power Supply, 12V, 12.5A, 150W - RSP-150-12
Regular price
£61.59 GBP
Regular price
Sale price
£61.59 GBP
Unit price
/
per
RSP-150 series, 150W single output enclosed type AC/DC power supply. This offers the models with the DC output mostly demanded from the industry. It is cooled by free air convection, working for the temperature up to 70°C. It includes short circuit, overload, over voltage, over temperature protection. Application includes factory control or automation apparatus test and measurement instrument, laser related machine, burn-in facility, RF application. Approvals is UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1, AS/NZS 62368.1, IS13252(Part1)/IEC60950-1.
Features
- Input voltage range from 85 to 264VAC, 120 to 370VDC, output voltage is 24V
- Output rated current is 10A, output rated power is 150W, typical efficiency is 89%
- Universal AC input / full range, built-in active PFC function
- Cooling by free air convection, built-in remote ON-OFF control
- LED indicator for power on
- 3 years warranty
- Working temperature range from -30 to +70°C
- Dimension is (L x W x H) 199 x 99 x 30mm
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1Outputs |
Output Power Max | 150W |
Output Voltage - Output 1 | 12VDC |
Output Current - Output 1 | 12.5A |
Input Voltage VAC | 85V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Product Range | RSP-150 Series |
Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
Country of Origin: | China |
