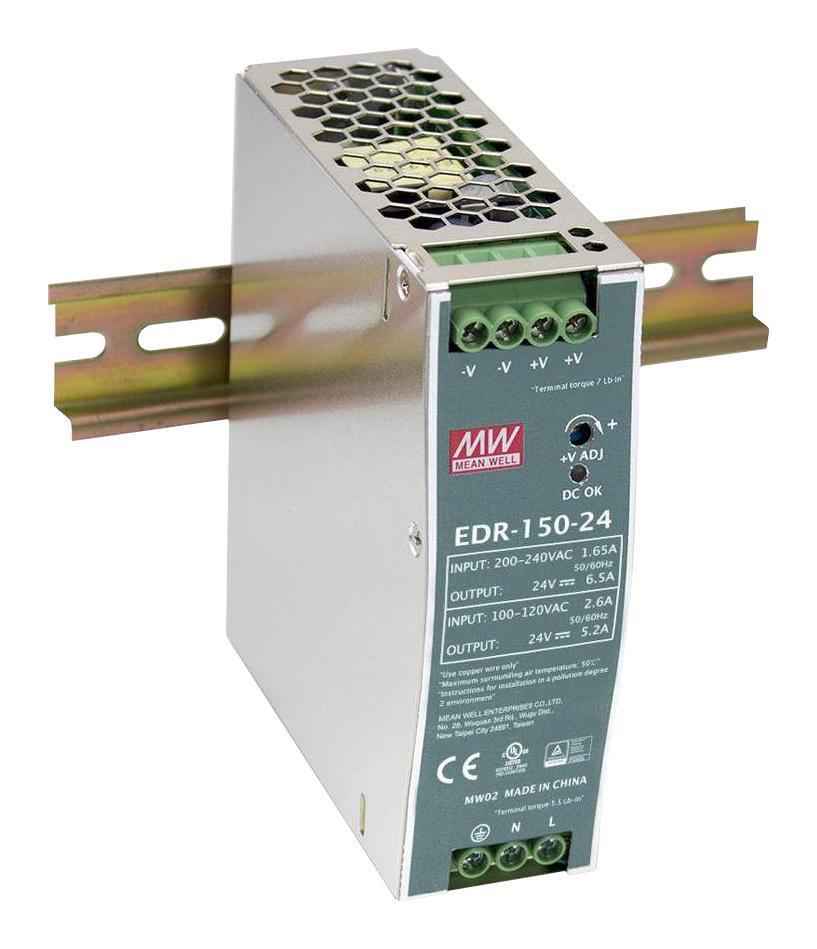

AC/DC DIN Rail Power Supply, 24V, 6.5A, 156W - EDR-150-24
AC/DC DIN Rail Power Supply, 24V, 6.5A, 156W - EDR-150-24
EDR-150-24 is EDR-150 series one economical slim DIN rail power supply. It will adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets and conforms to BS EN/ EN 61000 - 3 - 2, the norm the European union regulates for harmonic current. It is designed with a metal housing that enhances the unit's power dissipation. It is equipped with a constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus. It makes a very competitive power supply solution for industrial applications. The application includes an industrial control system, semiconductor fabrication equipment, factory automation, and electro-mechanical apparatus. Approved by UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1(meet BS EN/EN60204-1).
Features
- Output DC voltage is 24V, output rated current is 6.5A/230VAC, 5.2A/115VAC
- Output rated power is 156W/230VAC, 125W/115VAC, efficiency is 88.5%
- Input voltage range from 90 to 264VAC, 127 to 370VDC
- Universal AC input / full range, cooling by free air convection
- Short circuit / overload / over voltage / over temperature protection
- Working temperature range from -20 to +60°C
- 2 years warranty
- Dimension (W x H x D) is 40 x 125.2 x 113.5mm
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1 Output |
Output Power Max | 156W |
Output Voltage - Output 1 | 24VDC |
Output Current - Output 1 | 6.5A |
Input Voltage VAC | 90V AC to 264V AC |
Power Supply Output Type | Adjustable, Fixed |
Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
Country of Origin: | China |
