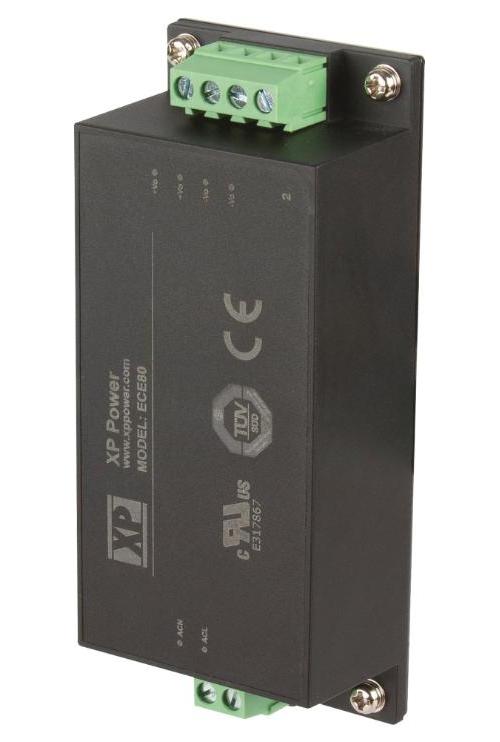

AC/DC DIN Rail Power Supply, 24V, 3.33A, 80W - ECE80US24-SD
AC/DC DIN Rail Power Supply, 24V, 3.33A, 80W - ECE80US24-SD
Regular price
£110.49 GBP
Regular price
Sale price
£110.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ECE80 series of compact encapsulated AC-DC power modules are available in both PCB & chassis mount versions offering exceptional power density of >11W/in3 . Output voltages are available from 12V to 48VDC and these "green power" modules offer high active mode efficiency and low no load power consumption. They also provide a peak load capability up to 130% of nominal power for up to 30s and a wide operating temperature range from -40 to 70°C
Features
- Ultra Compact Size
- Single Outputs from 12V to 48V
- Encapsulated
- PCB, Chassis Mount and DIN Rail Versions
- Less Than 0.3W No Load Input Power
- Operating Temperature -40°C to 70°C
- Peak Load Capability
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 80W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 3.33A |
| Input Voltage VAC | 85V AC to 264V AC |
| Power Supply Output Type | Fixed |
| Product Range | ECE80 Series |
| Country of Origin: | China |
