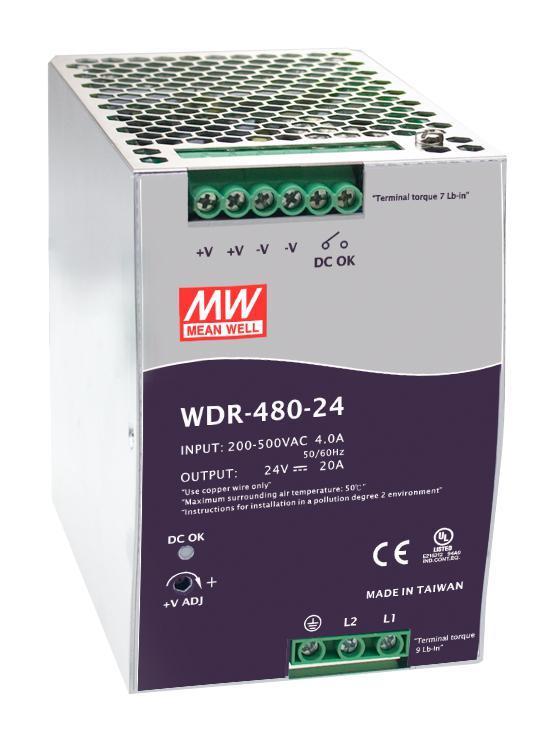

AC/DC DIN Rail Power Supply, 24V, 20A, 480W - WDR-480-24
AC/DC DIN Rail Power Supply, 24V, 20A, 480W - WDR-480-24
Regular price
£283.39 GBP
Regular price
Sale price
£283.39 GBP
Unit price
/
per
WDR-480-24 is WDR-480 series 480W single output industrial DIN RAIL power supply. It has built-in active PFC circuit and compliance to BS EN/EN61000-3-2. Also has high efficiency and low power dissipation. It includes short circuit, overload, overvoltage, overtemperature protection. It can be installed on DIN rail TS-35/7.5 or 15. Approved by UL508, EAC TP TC 004, IEC62368-1 CB, SIQ, design refer to BS EN/EN62368-1, AS/NZS 62368.1, GL (meet BS EN/EN60204-1).
Features
- Output DC voltage is 24V, output rated current is 20A, output rated power is 480W
- Typical efficiency is 92%
- Input voltage range from 180 to 550VAC, 254 to 780VDC
- Cooling by free air convection, built-in DC OK relay contact
- 100% full load burn-in test
- 3 years warranty
- Working temperature range from -30 to +70°C
- Dimension is (W x H x D) 85.5 x 125.2 x 128.5mm
Specifications | |
---|---|
Power Supply Applications | ITE |
No. of Outputs | 1 Output |
Output Power Max | 480W |
Output Voltage - Output 1 | 24VDC |
Output Current - Output 1 | 20A |
Input Voltage VAC | 180V AC to 550V AC |
Power Supply Output Type | Adjustable, Fixed |
Product Range | WDR-480 Series |
Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
Country of Origin: | China |
