AC/DC DIN Rail KNX Power Supply, 30V, 640mA, 19.2W - KNX-20E-640
AC/DC DIN Rail KNX Power Supply, 30V, 640mA, 19.2W - KNX-20E-640
Regular price
£108.69 GBP
Regular price
Sale price
£108.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

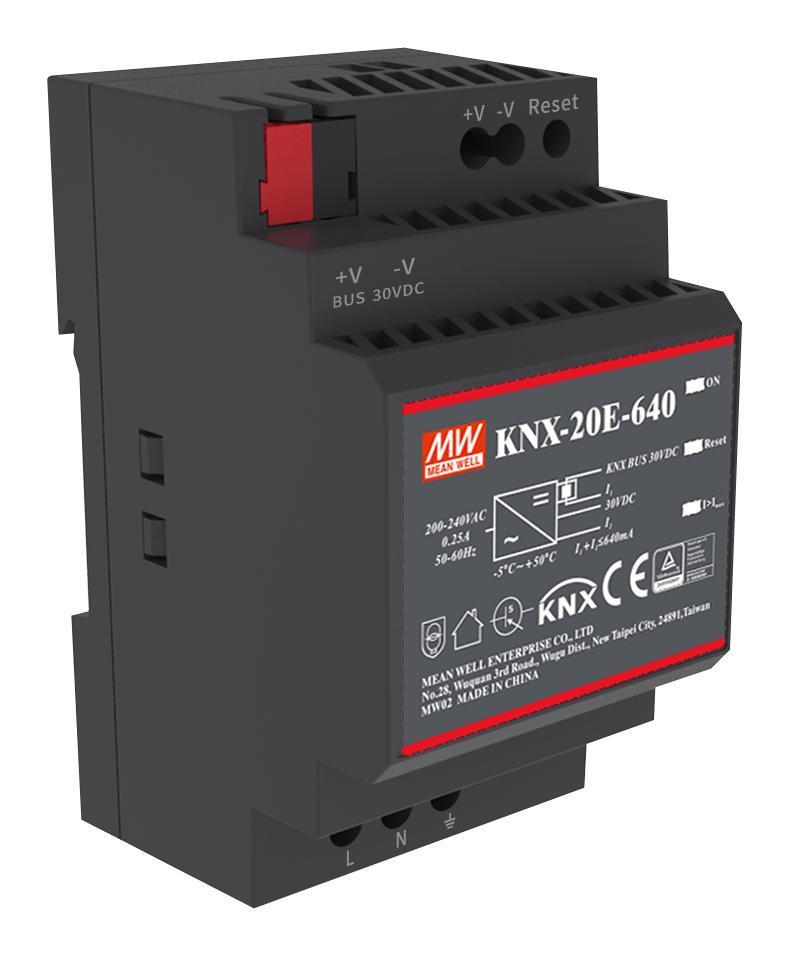

The KNX Power Supply KNX-20E is a 640mA power supply with high efficiency and a small footprint of only 3SU (52.5 mm). The device has a KNX bus choke output and an additional output for ancillary power. The -30°C to +70°C wide temperature operating range can meet all kinds of applications. LED indicators are used in case of normal operation,overload conditions and RESET operation. It is perfectly suitable to power up any products labeled with the KNX trademark.
Features
- EIB/KNX power supply with integrated choke
- Compact size with 3SU (52.5mm) width
- Safety extra low voltage (SELV)
- 180-264V AC input
- No load power consumption <0.5W
- Protections: Short circuit / Overload (short-circuit-proof) / Over voltage
- Cooling by free air convection
- Isolation Class I
- LED indicator for normal operation, bus reset and bus overload
- Installed on DIN rail TS-3517.5 or 15
- 100% full load burn-in test
- 3-years warranty
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 19.2W |
| Output Voltage - Output 1 | 30VDC |
| Output Current - Output 1 | 640mA |
| Input Voltage VAC | 180V AC to 264V AC |
| Power Supply Output Type | Fixed |
| Product Range | KNX-20E Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
