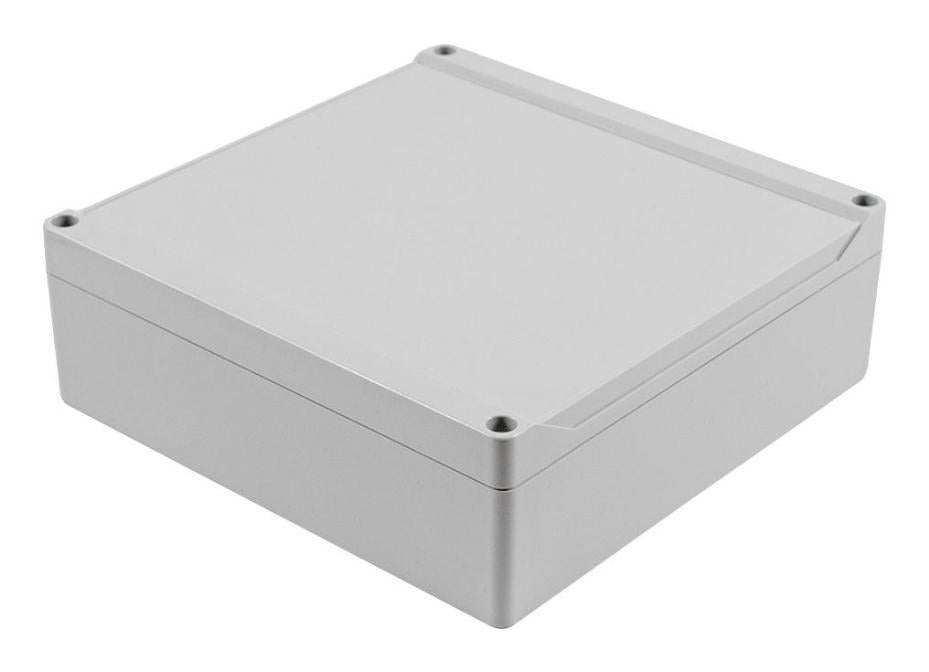

ABS Enclosure, 180x60x180mm, Grey, IP66 - 1555WGY
ABS Enclosure, 180x60x180mm, Grey, IP66 - 1555WGY
Regular price
£28.29 GBP
Regular price
Sale price
£28.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Enclosure suitable for mounting printed circuit boards or DIN rail mounted components.
Features
- 'Styled' lid version has three main advantages over flat lid (Hammond 1554 series)
- Smooth recessed surface on lid for a membrane keypad or label - standoffs moulded in the interior of the lid - designed for #6 self-tapping screws
- Moulded from general purpose material which carries a flammability rating of UL94-HB
- Gasketed lid with two-piece 'tongue and groove' construction provides protection against access of oil, dust and water
- Gasket is one piece made from high temperature, UL listed silicone
- Designed to meet NEMA Type 4, 4X, 6, 6P, 12, and 13 ratings
- Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly and disassembly
- All hardware is stainless steel to avoid corrosion caused by dissimilar metals
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
- Internal features are maximised for mounting options and vary with size
- IP66 rated
| Specifications | |
|---|---|
| Enclosure Type | Small |
| Enclosure Material | ABS |
| External Height - Metric | 60mm |
| External Width - Metric | 180mm |
| External Depth - Metric | 180mm |
| IP Rating | IP66 |
| Body Colour | Grey |
| External Height - Imperial | 2.36" |
| External Width - Imperial | 7.09" |
| External Depth - Imperial | 7.09" |
| Product Range | 1554 |
| Country of Origin: | Canada |
