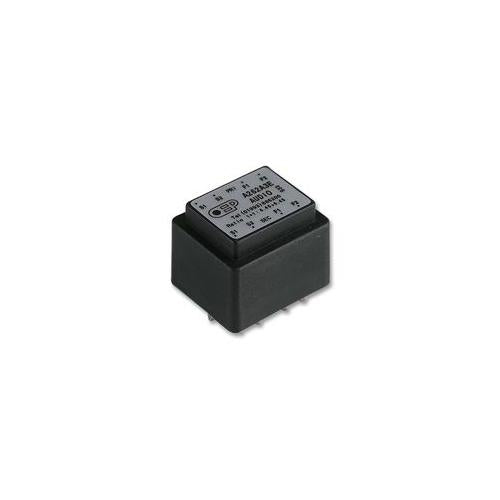

A262A3E OEP (Oxford Electrical Products) Transformer , Audio , 1+1:6.45+6.45

The A262A3E from OEP is a high performance audio transformer. This device is specifically designed for direct PCB mounting on a 0.1inch grid. Each transformer is constructed with dual windings on the primary and secondary providing a wide range of impedance matching ratios to suit many input, interstage and output applications. A foil screen is provided between the primary and secondary windings and rated at 100mW at 300Hz.

• Turn ratio is 1+1:6.45+6.45
• Primary impedance is 150 ohm
• Secondary impedance is 6.25ohm
• Individual primary winding impedance is 150 ohm
• Individual secondary winding impedance is 6.25Kohm
• Frequency range from 30Hz to 25KHz
• Primary DC resistance is 9.6+9.6ohm
• Secondary DC resistance is 535+605ohm
• Series connected primary impedance is 600 ohm C.T and secondary impedance is 25Kohm C.T
• Dimension is W28 H22 D23mm
