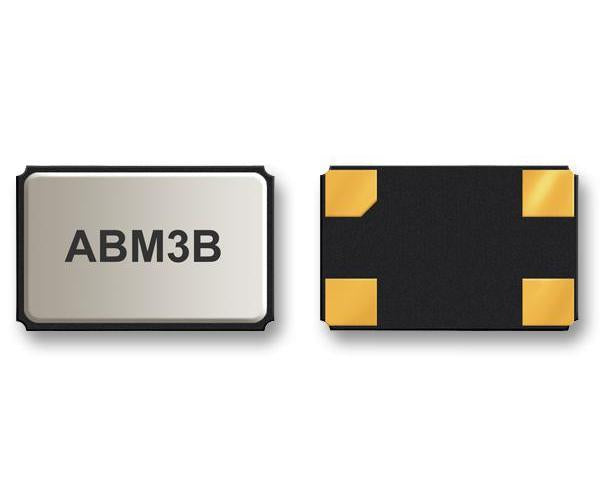

8MHz Crystal, SMD, 5mm x 3.2mm, 10ppm, 10pF - ABM3B-8.000MHZ-10-1-U-T
8MHz Crystal, SMD, 5mm x 3.2mm, 10ppm, 10pF - ABM3B-8.000MHZ-10-1-U-T
Regular price
£2.09 GBP
Regular price
Sale price
£2.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABM3B-8.000MHZ-10-1-U-T is a 5 x 3.2 x 1.1mm 10ppm surface-mount Crystal features tight stability, ceramic and metal lid assures high precision and reliability. The ABM3B series for use with the cellular telephones, pagers, communication and test equipment, PCMCIA, wireless and high density applications. It is suitable for reflow profile and seam sealing.
Features
- Fundamental operation mode
- 200R Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 100μW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
| Specifications | |
|---|---|
| Frequency Nom | 8MHz |
| Crystal Case | SMD, 5mm x 3.2mm |
| Frequency Stability + / - | 10ppm |
| Load Capacitance | 10pF |
| Frequency Tolerance + / - | 10ppm |
| Product Range | ABM3B Series |
| Operating Temperature Min | -10°C |
| Operating Temperature Max | 60°C |
| Country of Origin: | China |
