8 Channel 70V/100V Line Transformer - XFMR8
8 Channel 70V/100V Line Transformer - XFMR8
Regular price
£501.19 GBP
Regular price
Sale price
£501.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

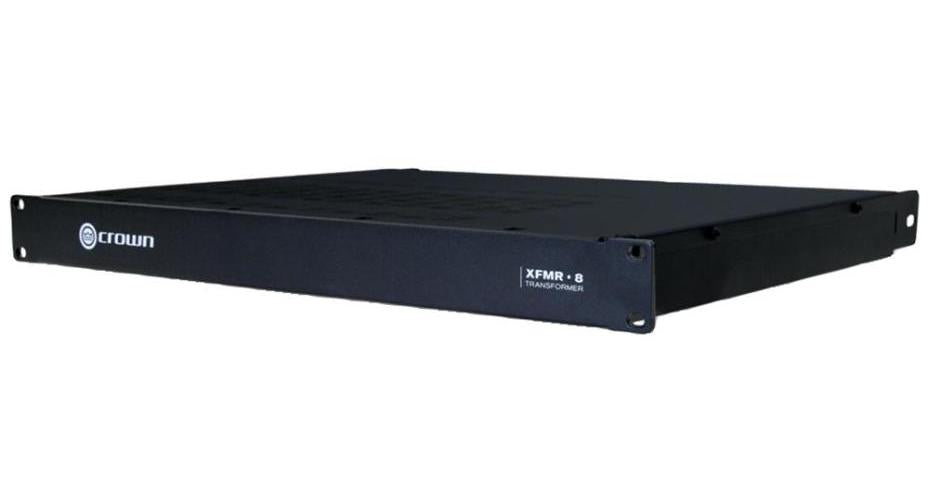

The Crown XFMR-8 is a rackmountable transformer to provide impedance matching between amplifier outputs and constant high voltage lines delivering the audio to suitable speakers. This unit allows amplifiers without direct 70Vrms or 100Vrms output capability to drive distributed speaker systems designed to operate at those voltages for up to 8x channels. Leads are provided to easily incorporate the XFMR unit with ComTech DriveCore types of amplifiers.
Features
- Allows amplifiers without direct constant voltage capability to be easily integrated into distributed systems
- Provides 70V and 100V output when used only with ComTech DriveCore™ series of amplifiers
- "Jumper" leads are provided to easily incorporate the XFMR unit with a ComTech DriveCore amplifier
- IN/OUT: 8x Pluggable barrier block connectors that accepts up to 14AWG wire
- Frequency response: 70Hz to 15kHz
- Insertion loss: ±1dB
- Max. input level: 32V
- Dimensions (HxWxD): 45x483x397mm
- Weight: 10.7kg
| Specifications | |
|---|---|
| Product Range | CROWN 70V/100V Audio Transformers |
| Plug Type | UK |
| Country of Origin: | China |
