6 Conductor Triple Decker Through Terminal Block, Push In Cage Clamp, 35mm DIN Rail, 22AWG to 12AWG, 20A, Grey - 2002-3231
6 Conductor Triple Decker Through Terminal Block, Push In Cage Clamp, 35mm DIN Rail, 22AWG to 12AWG, 20A, Grey - 2002-3231
Regular price
£4.99 GBP
Regular price
Sale price
£4.99 GBP
Unit price
/
per

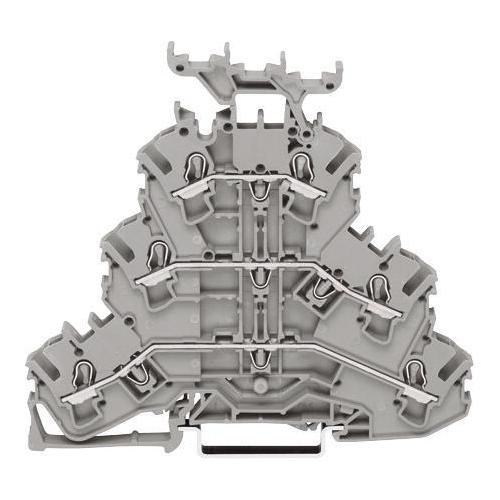

The 2002-3231 from Wago is a 6 Conductor triple decker through terminal block.
Features
- DIN 35 rail-mounted terminal block with PUSH-IN CAGE CLAMP® technology
- Significant cost savings through the reduction of panel space & faster installation
- Push Button termination for simple faster installation
- Top entry wiring
- Screwless Connection
Specifications | |
---|---|
No. of Positions | 6Ways |
Wire Size AWG Min | 22AWG |
Wire Size AWG Max | 12AWG |
Conductor Area CSA | 4mm2 |
Wire Connection Method | Clamp |
Rated Current | 20A |
Rated Voltage | 600V |
No. of Levels | 3 |
Product Range | TOPJOB S 2002 |
