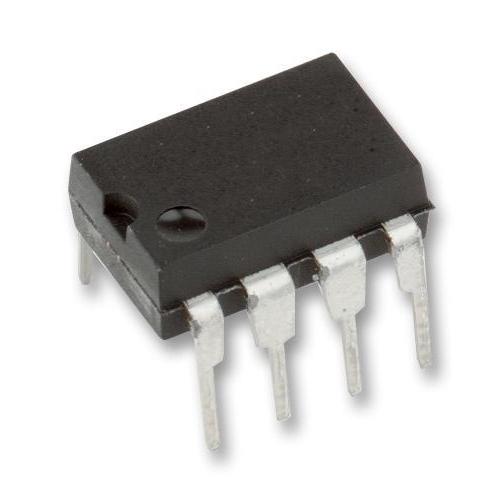

555 Timer, Oscillator & Pulse Generator IC, TTL Compatible, Astable, Monostable, 4.5V to 16V, DIP-8 - LM555CN/NOPB
555 Timer, Oscillator & Pulse Generator IC, TTL Compatible, Astable, Monostable, 4.5V to 16V, DIP-8 - LM555CN/NOPB
Regular price
£2.99 GBP
Regular price
Sale price
£2.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The LM555CN/NOPB is a highly stable 555 Timer for generating accurate time delays and oscillation. Additional terminals are provided for triggering or resetting if desired. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and duty cycle are accurately controlled with two external resistors and one capacitor. The circuit may be triggered and reset on falling waveforms and the output circuit can source or sink up to 200mA or drive TTL circuits.
Features
- Direct replacement for SE555/NE555
- Timing from microseconds through hours
- Operates in both astable and monostable modes
- Adjustable duty cycle
- Output and supply TTL compatible
- 0.005%/?C Temperature stability
- Normally on and normally off output
- Green product and no Sb/Br
| Specifications | |
|---|---|
| Frequency | 10MHz |
| Supply Voltage Min | 4.5V |
| Supply Voltage Max | 16V |
| Digital IC Case | DIP |
| No. of Pins | 8Pins |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Product Range | 555 timer |
| Important Product Warning: | This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. |
| Country of Origin: | Malaysia |
