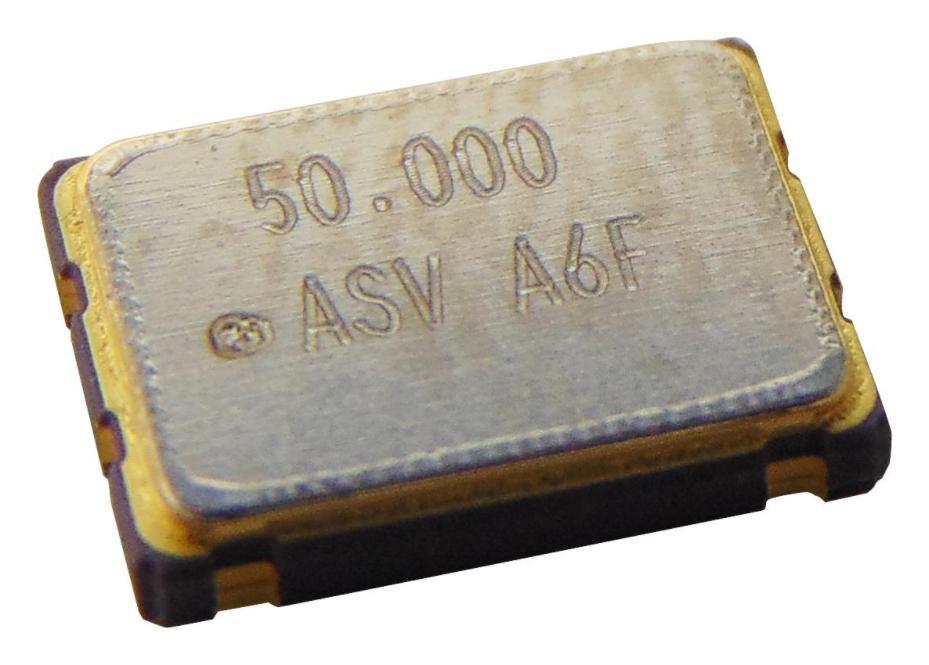

50MHz Oscillator, SMD, 7mm x 5mm, 20ppm, 3.3V - ASV-50.000MHZ-EJ-T
50MHz Oscillator, SMD, 7mm x 5mm, 20ppm, 3.3V - ASV-50.000MHZ-EJ-T
Regular price
£2.99 GBP
Regular price
Sale price
£2.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ASV-50.000MHZ-EJ-T is a 7 x 5.08 x 1.8mm 3.3VDC HCMOS surface-mount Crystal Clock Oscillator with seam sealed assures high reliability and high output drive capability. The ASV series oscillator for use with the clock signalling for microprocessors, PC motherboards and graphic cards applications. It is suitable for reflow profile.
Features
- 60% Maximum symmetry
- 5ms Maximum start-up time
- 3.2ps Maximum period jitter one sigma RMS
| Specifications | |
|---|---|
| Frequency Nom | 50MHz |
| Frequency Stability + / - | 20ppm |
| Oscillator Case | SMD, 7mm x 5mm |
| Supply Voltage Nom | 3.3V |
| Product Range | ASV Series |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Oscillator Output Compatibility | HCMOS |
| Important Product Warning: | ESD sensitive device, take proper precaution while handling the device. |
| Country of Origin: | Japan |
