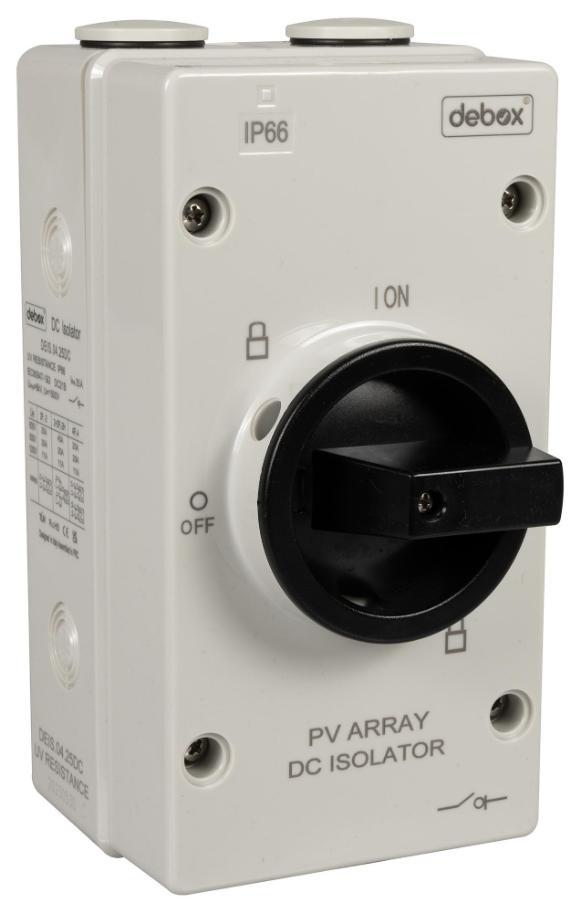

4 Pole DC Isolator Switch, 25A - DE1S.04.25DC

Features

• IP66 Rated
• Silver Plated Alloy Contacts for High Reliability
• Highly Visible & Robust Housing
• 4-Pole Earth terminal Included
• Polycarbonate UL94V-0 Flame Retardant
• Captive Retained Cover Screws
• Can be Padlocked (padlock not included)
• Rated insulation voltage (Ui): 1500V AC
• Rated Carry Current: 25A
• Rated impulse without voltage (Uimp): 8000V
• Rated short-time with stand current (Icw) 2,4,6,8: 900A
• Rated short-time with stand current (Icw) 2H, 3H, 4H: 1500A
• Rated short-time making capacity (Icm) 2,4,6,8: 900A
• Rated short-time making capacity (Icm) 2H, 3H, 4H: 1500A
• Rated conditional short circuit current (lcc): 5000A
• Maximum Fuse Size (gL(gG): 63A
• Dimensions: 98x81x180mm
