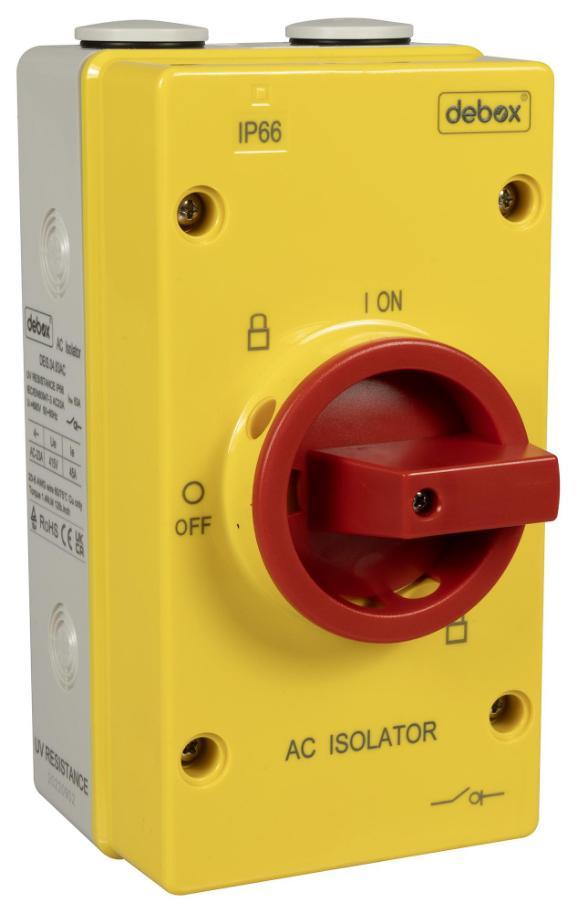

4 Pole AC Rotary Isolator Switch, 240V AC, 63A - DE1S.04.63AC

4 Pole AC Rotary Isolator Switch, 240V AC, 63A - DE1S.04.63AC

£29.89 GBP
£29.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Features

  • IP66 Rated
  • Silver Plated Alloy Contacts for High Reliability
  • Highly Visible & Robust Housing
  • 4-Pole Earth terminal Included
  • Polycarbonate UL94V-0 Flame Retardant
  • Captive Retained Cover Screws
  • Can be Padlocked (padlock not included)
  • Rated insulation voltage (Ui): 690V AC
  • Rated Carry Current: 63A
  • Rated operating current (A) AC-23A: 43A
  • Rated operating current (A) AC-3: 36A
  • Rated voltage: 240V / 440V
  • Rated power control (kW) AC-23A: 9 / 22
  • Rated power control (kW) AC-3: 8 / 18.5
  • UL-CSA: 240 / 440
  • Motor Load (HP): 10 / 20
  • Rated current within: 516A
  • Dimensions: 98x81x180mm

Specifications
Country of Origin: China

EAN:
Manufacturer Part Number:
