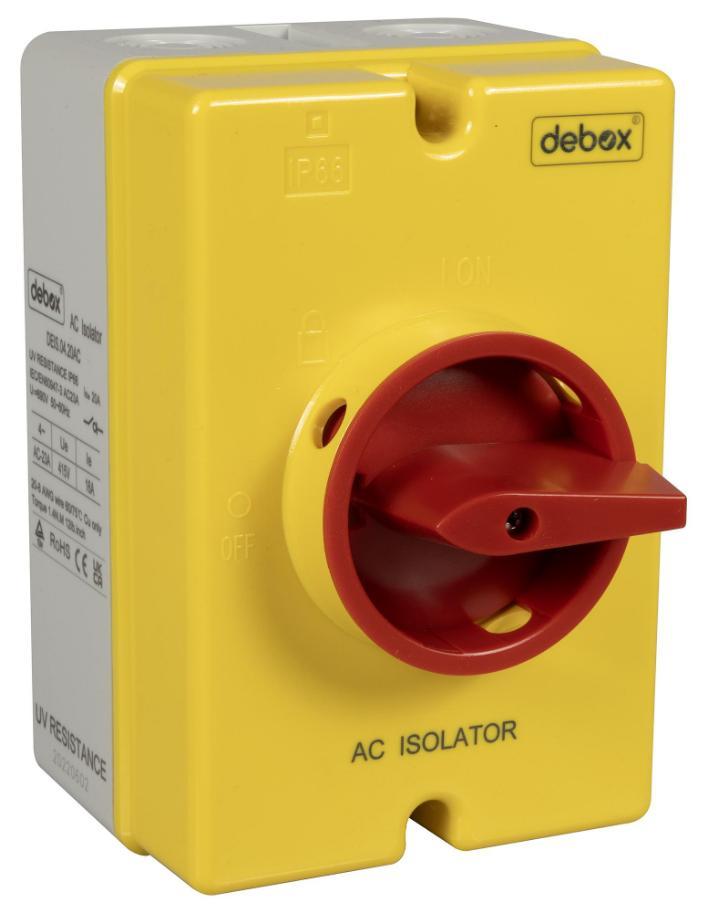

4 Pole AC Rotary Isolator Switch, 240V AC, 20A - DE1S.04.20AC

Features

• IP66 Rated
• Silver Plated Alloy Contacts for High Reliability
• Highly Visible & Robust Housing
• 4-Pole Earth terminal Included
• Polycarbonate UL94V-0 Flame Retardant
• Captive Retained Cover Screws
• Can be Padlocked (padlock not included)
• Rated insulation voltage (Ui): 690V AC
• Rated Carry Current: 20A
• Rated operating current (A) AC-23A: 15A
• Rated operating current (A) AC-3: 11A
• Rated voltage: 240V / 440V
• Rated power control (kW) AC-23A: 3.7 / 5.5
• Rated power control (kW) AC-3: 2.7V / 3.7V
• UL-CSA: 240 / 440
• Motor Load (HP): 2 / 3
• Rated current within: 180A
• Dimensions: 98x80x145mm
