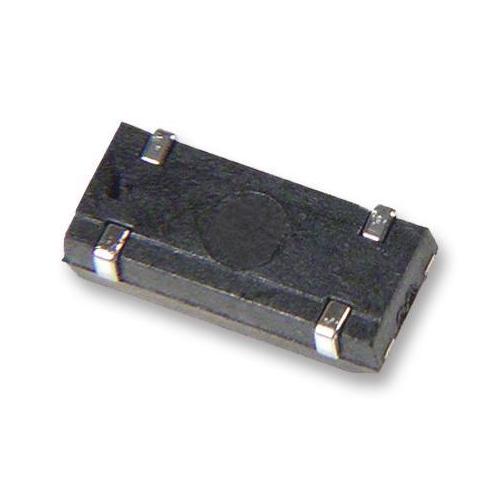

32.768KHz Crystal, SMD, 8mm x 3.8mm, 12.5pF, 10ppm - ABS25-32.768KHZ-1-T
32.768KHz Crystal, SMD, 8mm x 3.8mm, 12.5pF, 10ppm - ABS25-32.768KHZ-1-T
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABS25-32.768KHZ-1-T is a 8 x 3.8 x 2.5mm 10ppm low frequency surface-mount Crystal with plastic moulded ideal for high density circuit boards. The ABS25 series for use with the wireless communications, PDA and palm pilots, wide range in communication, measuring equipment and industrial applications. It is suitable for reflow profile.
Features
- 50kR Maximum equivalent series resistance
- 1μW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
| Specifications | |
|---|---|
| Frequency Nom | 32.768kHz |
| Crystal Case | SMD, 8mm x 3.8mm |
| Load Capacitance | 12.5pF |
| Frequency Tolerance + / - | 10ppm |
| Product Range | ABS25 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | Japan |
