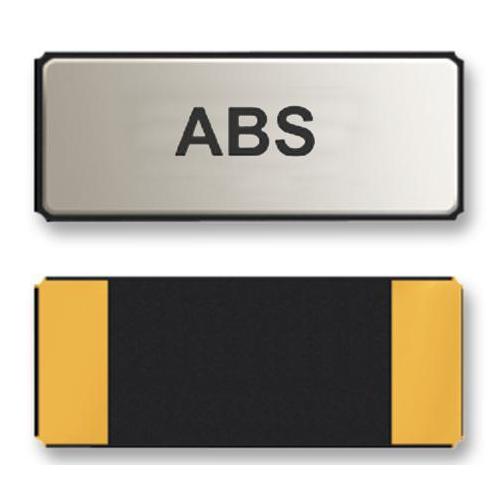

32.768kHz Crystal, SMD, 3.2mm x 1.5mm, 12.5pF, 20ppm - ABS07-32.768KHZ-T
32.768kHz Crystal, SMD, 3.2mm x 1.5mm, 12.5pF, 20ppm - ABS07-32.768KHZ-T
Regular price
£2.09 GBP
Regular price
Sale price
£2.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- Guaranteed ESR of 60kR maximum for low power designs
- 0.9mm height ideal for high density circuit boards
- Seam sealed ceramic package offers excellent environmental & heat resistance
- Extended operating temperature of -40°C to +85°C for industrial applications
| Specifications | |
|---|---|
| Frequency Nom | 32.768kHz |
| Crystal Case | SMD, 3.2mm x 1.5mm |
| Load Capacitance | 12.5pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABS07 Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Important Product Info: | Due to material availability, the outline and finish colour of the component may vary, this variation in no way affects the electrical performance of the product. |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
