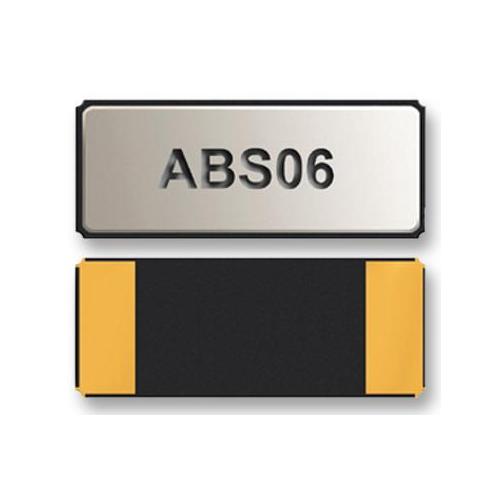

32.768kHz Crystal, SMD, 2mm x 1.2mm, 9pF, 10ppm - ABS06-32.768KHZ-9-1-T
32.768kHz Crystal, SMD, 2mm x 1.2mm, 9pF, 10ppm - ABS06-32.768KHZ-9-1-T
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABS06-32.768KHZ-9-1-T is a 2 x 1.2 x 0.6mm 10ppm surface-mount low profile Crystal features ceramic offers excellent environmental and heat resistance ideal for high density circuit boards. The ABS06 series crystal for use with the wireless communications, PDA and palm pilots, wide range in communication, measuring equipment and industrial applications.
Features
- Flexural (tuning fork) operation mode
- 90kR Maximum equivalent series resistance
- 0.5μW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
| Specifications | |
|---|---|
| Frequency Nom | 32.768kHz |
| Crystal Case | SMD, 2mm x 1.2mm |
| Load Capacitance | 9pF |
| Frequency Tolerance + / - | 10ppm |
| Product Range | ABS06 Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Country of Origin: | Singapore |
