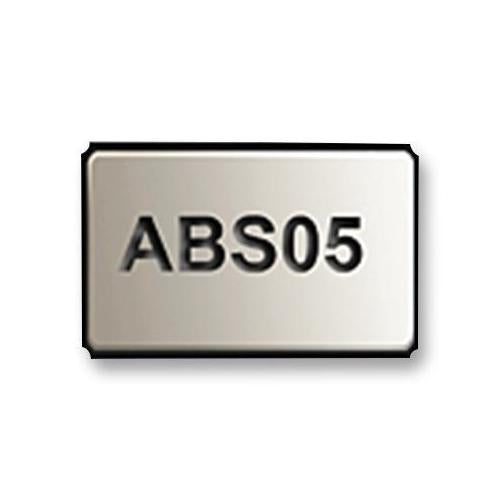

32.768kHz Crystal, SMD, 1.6mm x 1mm, 9pF, 20ppm - ABS05-32.768KHZ-9-T
32.768kHz Crystal, SMD, 1.6mm x 1mm, 9pF, 20ppm - ABS05-32.768KHZ-9-T
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABS05-32.768KHZ-9-T is a 1.6 x 1 x 0.5mm 20ppm surface-mount low profile Crystal features ceramic offers excellent environmental and heat resistance ideal for high density circuit boards. The ABS05 series for use with the smart display credit cards, wireless communications, PDA and palm pilots, wide range in communication and measuring equipments and industrial applications.
Features
- Flexural (tuning fork) operation mode
- 90kR Maximum equivalent series resistance
- 0.5μW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
| Specifications | |
|---|---|
| Frequency Nom | 32.768kHz |
| Crystal Case | SMD, 1.6mm x 1mm |
| Load Capacitance | 9pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABS05 Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Important Product Warning: | ESD sensitive device, take proper precaution while handling the device. |
| Country of Origin: | Singapore |
