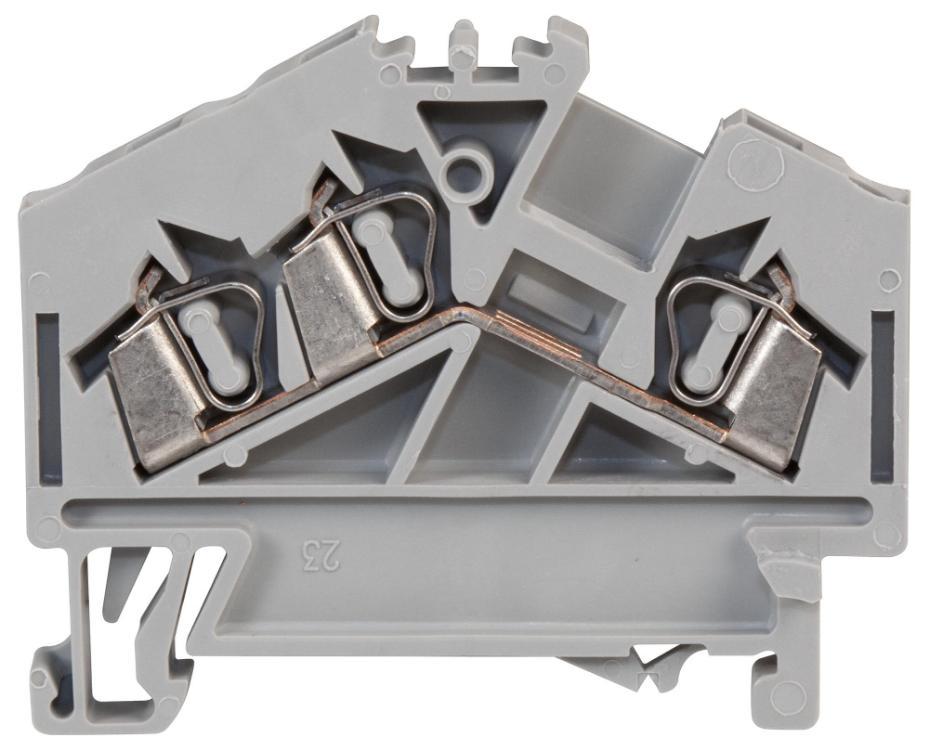

3 Conductor Through Terminal Block, 35mm DIN Rail, Cage Clamp, 28AWG to 12AWG, 24A - 280-641
3 Conductor Through Terminal Block, 35mm DIN Rail, Cage Clamp, 28AWG to 12AWG, 24A - 280-641
Regular price
£2.49 GBP
Regular price
Sale price
£2.49 GBP
Unit price
/
per
The 280-641 from Wago is a 3 conductor through DIN rail terminal block. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.
Features
- Gray colour terminal block
- Dimension of terminal block is 36.5mm x 50.5mm x 5mm (H x L x W)
- Weight of 6.68g
- Front entry wiring
- ABS, CCA, KEMA and UL approved, ratings according to IEC/EN 60947-7-1 standards
- PA 6.6 V0 insulating material
- Angled design
- Pollution degree of 3
Specifications | |
---|---|
No. of Positions | 3Ways |
Wire Size AWG Min | 28AWG |
Wire Size AWG Max | 12AWG |
Conductor Area CSA | 2.5mm2 |
Wire Connection Method | Clamp |
Rated Current | 24A |
Rated Voltage | 800V |
No. of Levels | 1 |
Product Range | 280 |
Country of Origin: | Germany |
