25MHz Crystal Oscillator, 50ppm, SMD, 3.2mm x 2.5mm, 3.3V - ASE-25.000MHZ-LC-T
25MHz Crystal Oscillator, 50ppm, SMD, 3.2mm x 2.5mm, 3.3V - ASE-25.000MHZ-LC-T
Regular price
£2.99 GBP
Regular price
Sale price
£2.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

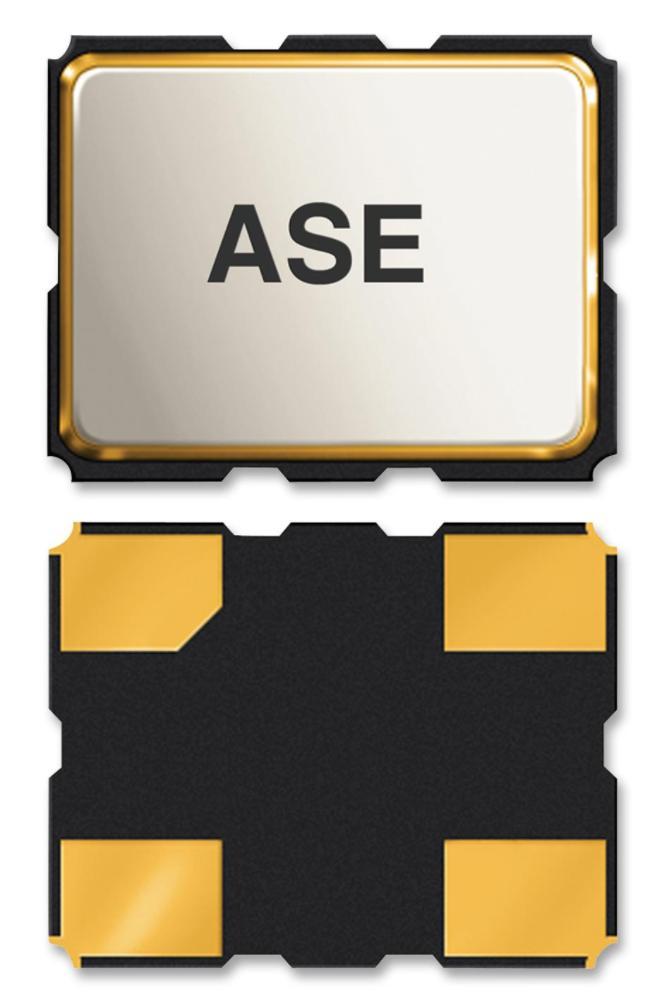

The ASE-25.000MHZ-LC-T is a 3.2 x 2.5 x 1.2mm 3.3V CMOS 50ppm surface-mount Crystal Oscillator features tri-state function, low RMS jitter and for tight stability. The ASE series oscillator for use with the CCD clock for VTR camera, equipment connected to PC or PC cards, PDA, wireless communication and solid state drive applications. It is suitable for reflow profile.
Features
- Low current consumption
- 55% Maximum symmetry
- 2ms Maximum start-up time
- 5ps Maximum EMS jitter
| Specifications | |
|---|---|
| Frequency Nom | 25MHz |
| Frequency Stability + / - | 50ppm |
| Oscillator Case | SMD, 3.2mm x 2.5mm |
| Supply Voltage Nom | 3.3V |
| Product Range | ASE Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Oscillator Output Compatibility | LVCMOS |
| Country of Origin: | China |
