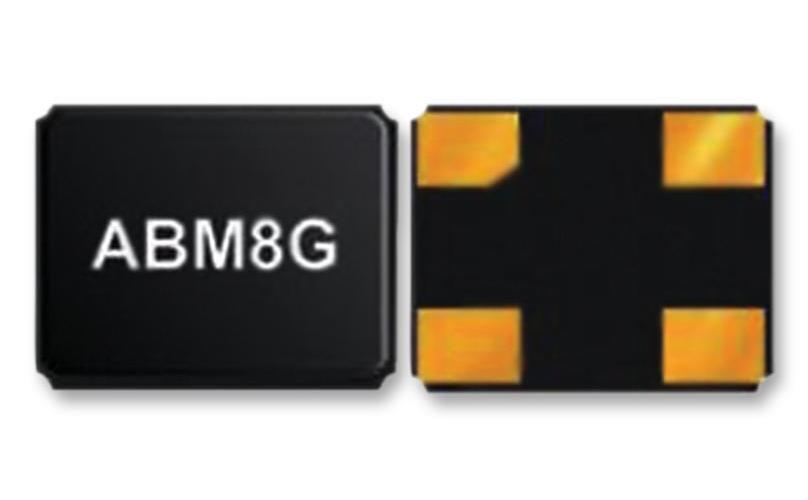

24MHz Crystal, SMD, 3.2mm x 2.5mm, 30ppm, 18pF, 20ppm - ABM8G-24.000MHZ-18-D2Y-T
24MHz Crystal, SMD, 3.2mm x 2.5mm, 30ppm, 18pF, 20ppm - ABM8G-24.000MHZ-18-D2Y-T
Regular price
£1.99 GBP
Regular price
Sale price
£1.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABM8G-24.000MHZ-18-D2Y-T is a 3.2 x 2.5 x 1mm 20 and 30ppm ultra miniature ceramic surface-mount Crystal features glass sealed assures high reliability and high temperature operation, tight tolerance and stability. The ABM8G series crystal for use with the modems, communication, test and thin equipment, PMCIA, wireless and high density applications. It is IR reflow capable.
Features
- Fundamental operation mode
- 60R Maximum equivalent series resistance
- 5pF Maximum shunt capacitance
- 100μW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
| Specifications | |
|---|---|
| Frequency Nom | 24MHz |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Frequency Stability + / - | 30ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABM8G Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Country of Origin: | Taiwan |
