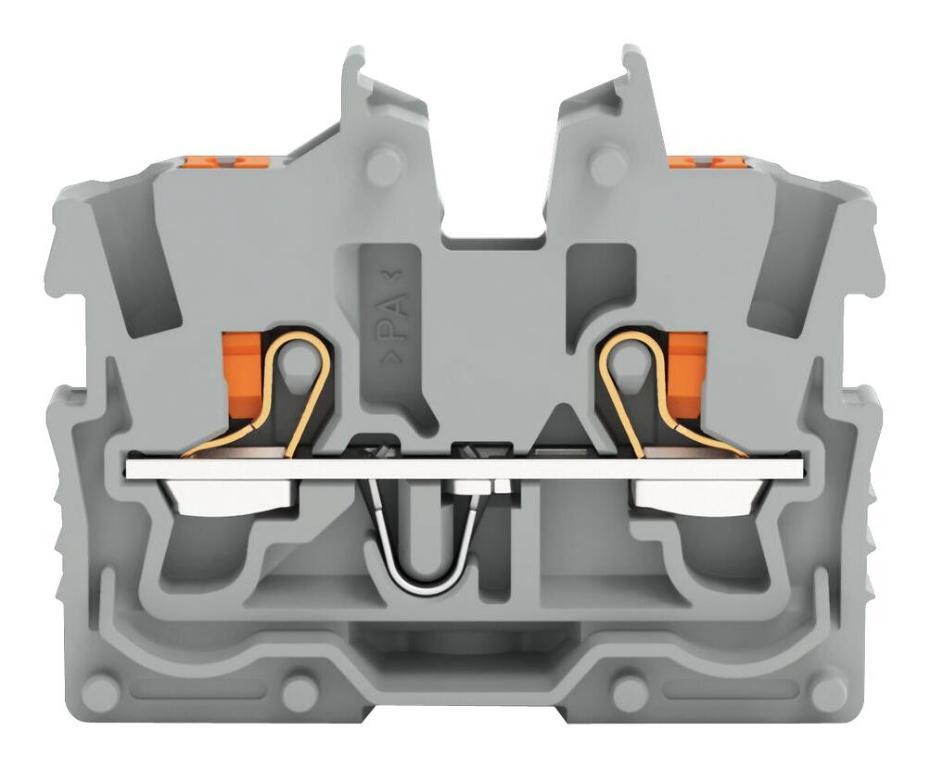

2 Miniature Through Terminal Block with Push Button, Push In Cage Clamp, Flange Mount, 24AWG to 16AWG, 500V, 13.5A, Grey - 2250-301
2 Miniature Through Terminal Block with Push Button, Push In Cage Clamp, Flange Mount, 24AWG to 16AWG, 500V, 13.5A, Grey - 2250-301
Regular price
£2.89 GBP
Regular price
Sale price
£2.89 GBP
Unit price
/
per
Features
- 2 Conductor terminal blocks with Push Button CAGE CLAMP® technology
- Significant cost savings through the reduction of panel space & faster installation
- Fits cable of size 0.14mm2 - 1.5mm2 / 24 AWG to 16 AWG
- Nominal cross-section: 1mm2
- Nominal Voltage: 500V
- Rated current: 13.5A
- Front entry wiring
- Screwless Connection
Specifications | |
---|---|
No. of Positions | 2Ways |
Wire Size AWG Min | 24AWG |
Wire Size AWG Max | 16AWG |
Conductor Area CSA | 1mm2 |
Wire Connection Method | Push In |
Rated Current | 13.5A |
Rated Voltage | 500V |
No. of Levels | 1 |
Product Range | 2250-30x Series |
Country of Origin: | Germany |
