2 Conductor Through Terminal Block, 35mm DIN Rail, Cage Clamp, 28AWg to 12AWG, 24A - 280-101
2 Conductor Through Terminal Block, 35mm DIN Rail, Cage Clamp, 28AWg to 12AWG, 24A - 280-101
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

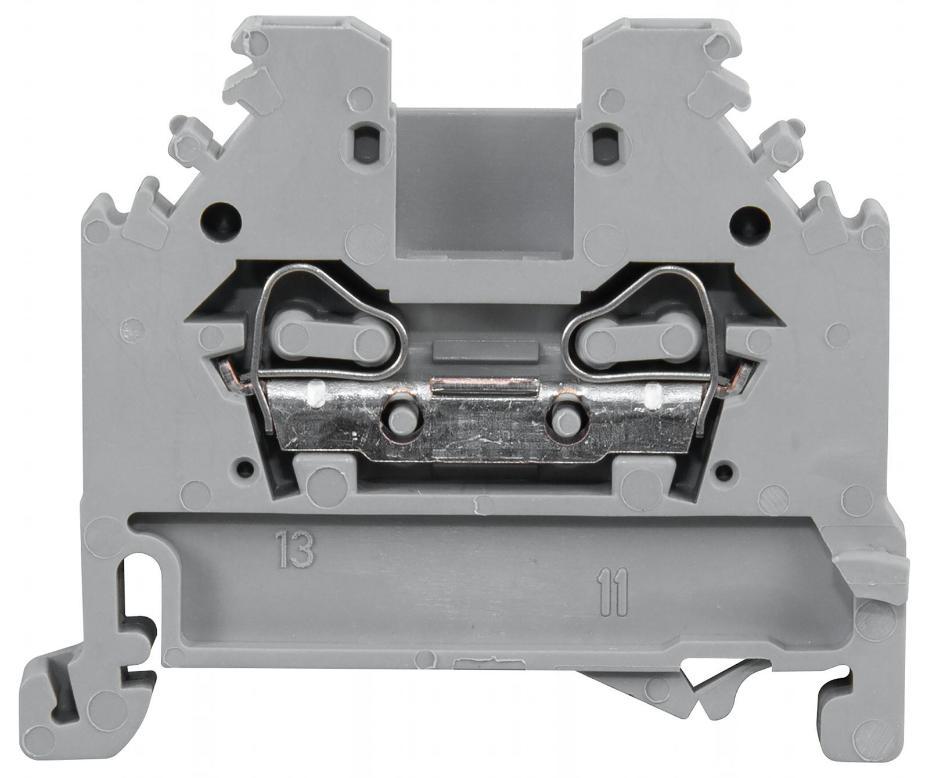

The 280-101 from Wago is a 2 conductor through DIN rail terminal block equipped with Wago's advanced CAGE CLAMP®. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.
Features
- Grey colour terminal block
- Dimension of terminal block is 30.5mm x 42.5mm x 5mm (H x L x W)
- Weight of 3.921g
- Side entry wiring
- Ratings according to IEC/EN 60947-7-1 standards
- PA 6.6 V0 insulating material
- Horizontal design
- Pollution degree of 3
| Specifications | |
|---|---|
| No. of Positions | 2Ways |
| Wire Size AWG Min | 28AWG |
| Wire Size AWG Max | 12AWG |
| Conductor Area CSA | 2.5mm2 |
| Wire Connection Method | Clamp |
| Rated Current | 24A |
| Rated Voltage | 800V |
| No. of Levels | 1 |
| Product Range | 280 |
| Country of Origin: | India |
