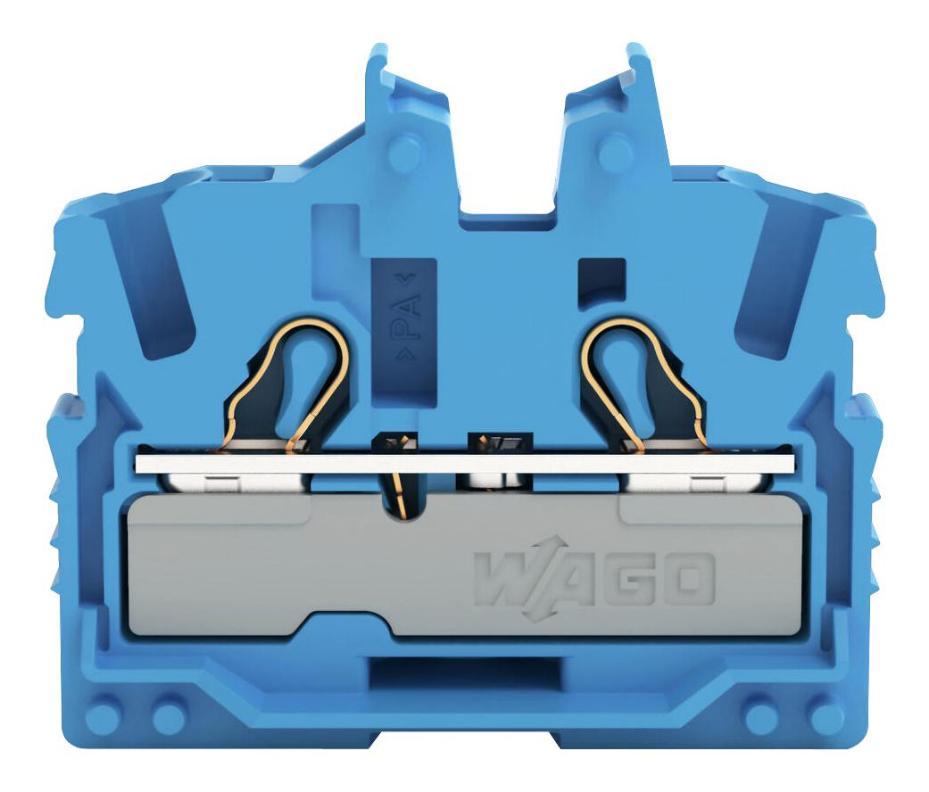

2 Conductor Miniature Through Terminal Block with Operating Slots, Flange Mount, Push In Cage Clamp, 22 AWG to 12AWG, 800V, 24A, - 2052-304
2 Conductor Miniature Through Terminal Block with Operating Slots, Flange Mount, Push In Cage Clamp, 22 AWG to 12AWG, 800V, 24A, - 2052-304
Regular price
£2.79 GBP
Regular price
Sale price
£2.79 GBP
Unit price
/
per
Features
- 2 Conductor terminal blocks with CAGE CLAMP® technology
- Significant cost savings through the reduction of panel space & faster installation
- Fits cable of size 0.25mm2 - 4mm2 / 22 AWG to 12 AWG
- Nominal cross-section: 2.5mm2
- Nominal Voltage: 800V
- Rated current: 24A
- Front entry wiring
- Screwless Connection
Specifications | |
---|---|
No. of Positions | 2Ways |
Wire Size AWG Min | 22AWG |
Wire Size AWG Max | 12AWG |
Conductor Area CSA | 2.5mm2 |
Wire Connection Method | Push In |
Rated Current | 24A |
Rated Voltage | 800V |
No. of Levels | 1 |
Product Range | 2052-30x Series |
Country of Origin: | Germany |
