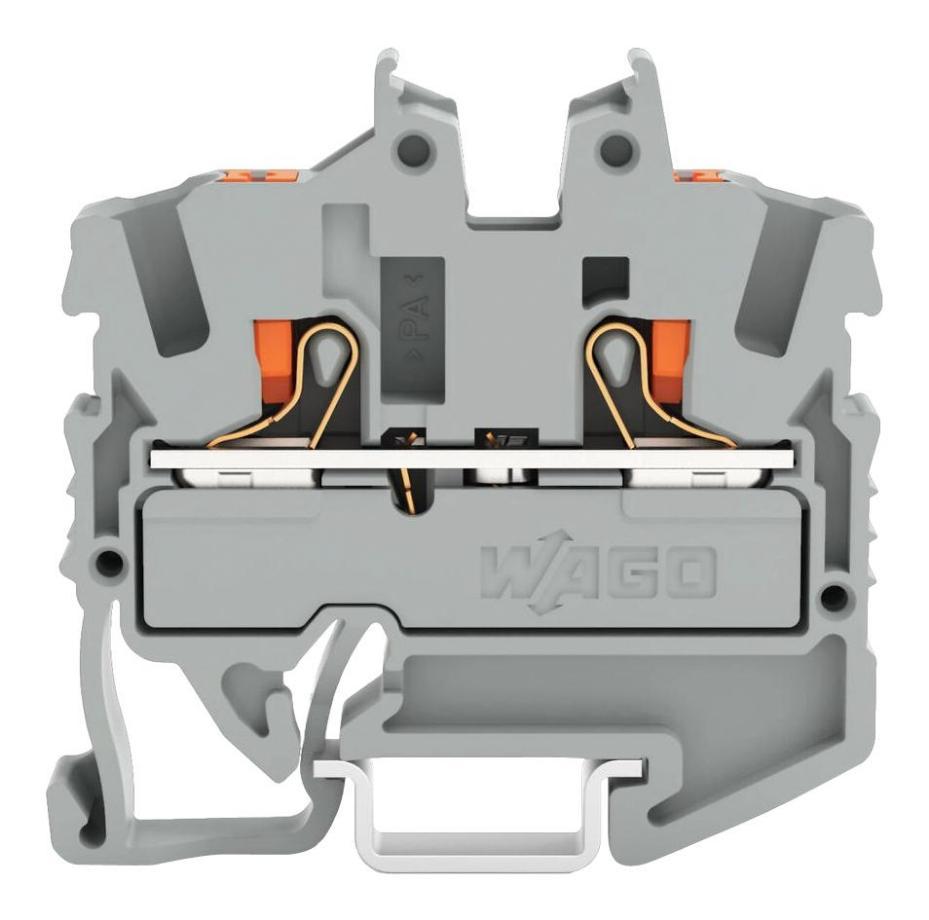

2 Conductor Miniature Through 15mm DIN Rail Terminal Block, Push Button, Push In Cage Clamp, 800V, 24A, 22 AWG to 12 AWG, Grey - 2252-1201

2 Conductor Miniature Through 15mm DIN Rail Terminal Block, Push Button, Push In Cage Clamp, 800V, 24A, 22 AWG to 12 AWG, Grey - 2252-1201

£2.99 GBP
£2.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Features

  • 2 Conductor terminal blocks with Push Button CAGE CLAMP® technology
  • Significant cost savings through the reduction of panel space & faster installation
  • Fits cable of size 0.25mm2 - 4mm2 / 22 AWG to 12 AWG
  • Nominal cross-section: 2.5mm2
  • Nominal Voltage: 800V
  • Rated current: 24A
  • Front entry wiring
  • Screwless Connection

Specifications
No. of Positions 2Ways
Wire Size AWG Min 22AWG
Wire Size AWG Max 12AWG
Conductor Area CSA 2.5mm2
Wire Connection Method Push In
Rated Current 24A
Rated Voltage 800V
No. of Levels 1
Product Range 2252-12x Series
Country of Origin: Germany

EAN: 4066966147131
Manufacturer Part Number:
