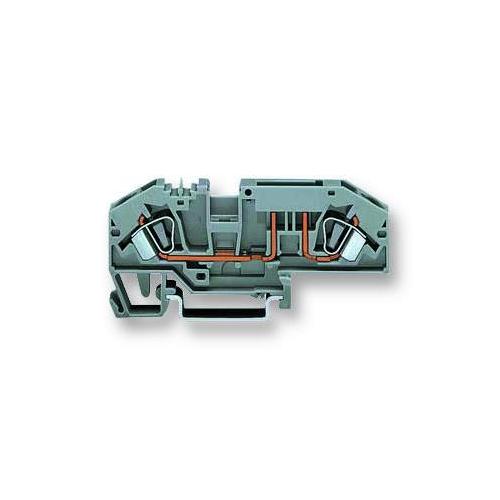

2 Conductor Fuse Terminal Block, 35mm DIN Rail, Cage Clamp, 24 AWG to 10 AWG, 800V, 30A - 282-696

2 Conductor Fuse Terminal Block, 35mm DIN Rail, Cage Clamp, 24 AWG to 10 AWG, 800V, 30A - 282-696

£5.79 GBP
£5.79 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The 282-696 from Wago is a 2 conductor fuse terminal block. This terminal block is used for mini-automotive blade style fuses with test option without blown fuse indication and is suitable for wire size ranging from 24AWG to 10AWG.

Features

  • Gray colour terminal block
  • Dimension of terminal block is 33.5mm x 85mm x 8mm (H x D x W)
  • Weight of 17.22g
  • Angled wiring type
  • UL, CSA recognised
  • Pollution degree of 3

Specifications
No. of Positions 2Ways
Wire Size AWG Min 24AWG
Wire Size AWG Max 10AWG
Conductor Area CSA 6mm2
Wire Connection Method Clamp
Rated Current 30A
Rated Voltage 800V
No. of Levels 1
Product Range 282
Country of Origin: China

EAN: 4050821234517
Manufacturer Part Number:
