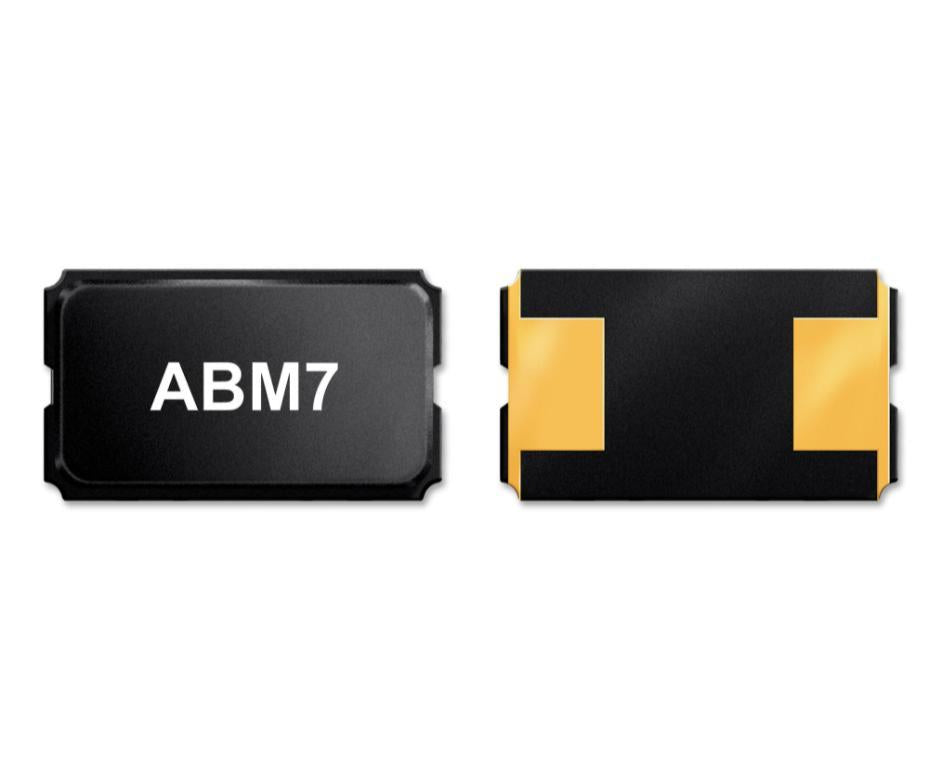

16MHz Crystal, SMD, 6mm x 3.5mm, 30ppm, 18pF - ABM7-16.000MHZ-D2Y-T
16MHz Crystal, SMD, 6mm x 3.5mm, 30ppm, 18pF - ABM7-16.000MHZ-D2Y-T
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABM7-16.000MHZ-D2Y-T is a 6 x 3.5 x 1.4mm 20 and 30ppm surface-mount micro miniature microprocessor Crystal features superior heat-resistant glass seal and ceramic assures high reliability. The ABM7 series crystal for use with the computers, modems, communication and thin equipment and also for industrial wide temperature applications, small size surface-mount suitable for high density applications.
Features
- Fundamental operation mode
- 50R Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 100μW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
| Specifications | |
|---|---|
| Frequency Nom | 16MHz |
| Crystal Case | SMD, 6mm x 3.5mm |
| Frequency Stability + / - | 30ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABM7 Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Country of Origin: | China |
