16MHz Crystal, SMD, 6mm x 3.5mm, 20ppm, 18pF - ABMM2-16.000MHZ-E2-T
16MHz Crystal, SMD, 6mm x 3.5mm, 20ppm, 18pF - ABMM2-16.000MHZ-E2-T
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per

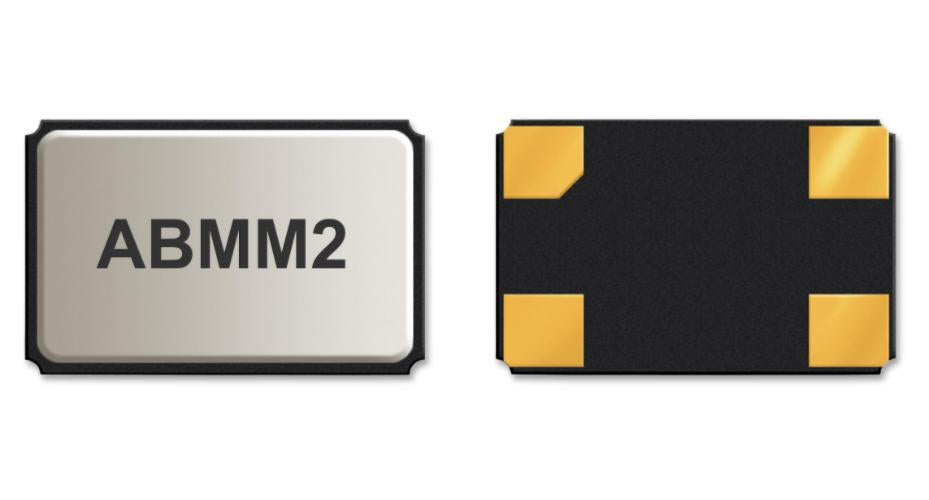

The ABMM2-16.000MHZ-E2-T is a 6 x 3.6 x 1.2mm 20ppm ceramic surface-mount low profile Quartz Crystal features seam sealed ceramic assures high reliability and tight tolerance and stability. The ABMM2 series crystal for use with the computers, modems, microprocessors, test equipments and PCMCIA applications. It is suitable for reflow profile.
Features
- Fundamental operation mode
- 50R Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 500μW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
Specifications | |
---|---|
Frequency Nom | 16MHz |
Crystal Case | SMD, 6mm x 3.5mm |
Frequency Stability + / - | 20ppm |
Load Capacitance | 18pF |
Frequency Tolerance + / - | 20ppm |
Product Range | ABMM2 Series |
Operating Temperature Min | -20°C |
Operating Temperature Max | 70°C |
Country of Origin: | Japan |
