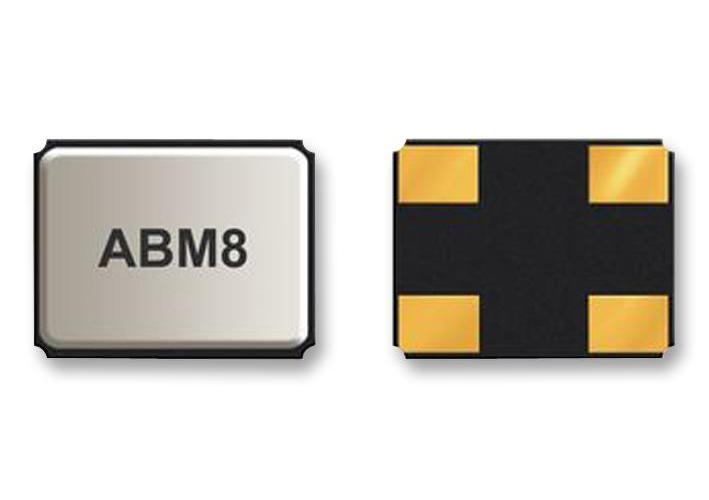

16MHz Crystal, SMD, 3.2mm x 2.5mm, 50ppm, 18pF - ABM8-16.000MHZ-B2-T
16MHz Crystal, SMD, 3.2mm x 2.5mm, 50ppm, 18pF - ABM8-16.000MHZ-B2-T
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
The ABM8 Series ultra-miniature ceramic SMD Crystal Oscillator works at a frequency range of 10 to 125MHz. It is suitable for use in high density applications, modems and PMCIA applications.
Features
- Low in height; suitable for thin equipment, 0.8mm max
- Seam sealed package assures high reliability
- Tight tolerance and stability available
- High density applications
- Also suitable for modems, communication and test equipment, PMCIA and wireless applications
Specifications | |
---|---|
Frequency Nom | 16MHz |
Crystal Case | SMD, 3.2mm x 2.5mm |
Frequency Stability + / - | 50ppm |
Load Capacitance | 18pF |
Frequency Tolerance + / - | 20ppm |
Product Range | ABM8 Series |
Operating Temperature Min | -20°C |
Operating Temperature Max | 70°C |
Country of Origin: | Japan |
