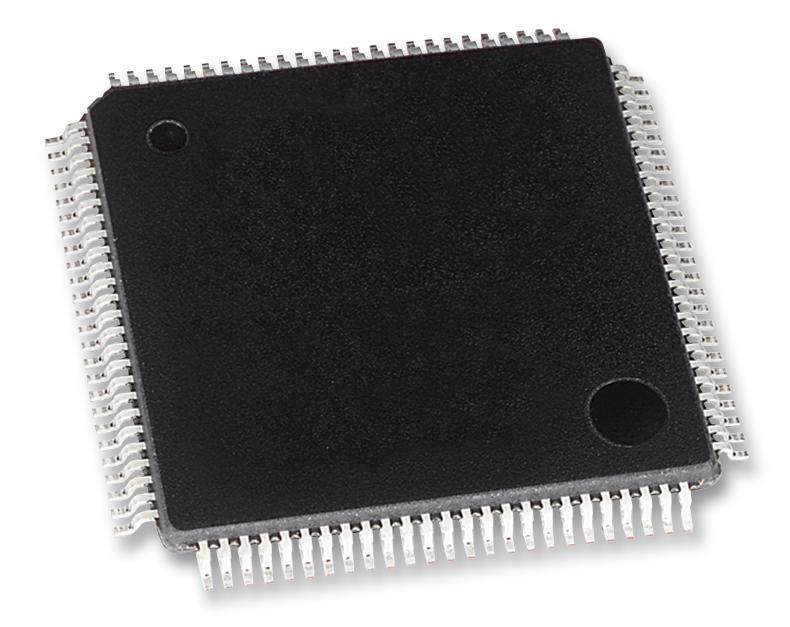

168MHz 32bit ARM Cortex-M4 Microcontroller in LQFP-100 Package - STM32F407VGT6
168MHz 32bit ARM Cortex-M4 Microcontroller in LQFP-100 Package - STM32F407VGT6
Regular price
£16.69 GBP
Regular price
Sale price
£16.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The STM32F407VGT6 is based on the high performance ARM Cortex-M4 32 bit RISC core operating at a frequency of up to 168MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single precision data processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The STM32F407VGT6 incorporates high speed embedded memories (Flash memory up to 1Mbyte, up to 192Kbytes of SRAM), up to 4Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32 bit multi AHB bus matrix.
Features
- Up to 1Mbyte of Flash memory
- Up to 192+4 Kbytes of SRAM including 64Kbyte of CCM (core coupled memory) data RAM
- Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
- LCD parallel interface, 8080/6800 modes
- Clock, reset and supply management
- 4MHz to 26 MHz crystal oscillator
- Internal 16 MHz factory-trimmed RC (1% accuracy)
- 32kHz oscillator for RTC with calibration
- Internal 32kHz RC with calibration
- Sleep, Stop and Standby modes
- VBAT supply for RTC, 20×32 bit backup
- 3 × 12bit, 2.4MSPS A/D converters
- 2 × 12bit D/A converters
- General purpose DMA controller with FIFOs and burst support
- Up to 17 timers
- Debug mode
- Up to 140 I/O ports with interrupt capability
- Up to 136 fast I/Os up to 84MHz
- Up to 138 5V tolerant I/Os
- Up to 15 communication interfaces
| Specifications | |
|---|---|
| Product Range | STM32 Family STM32F4 Series Microcontrollers |
| Device Core | ARM Cortex-M4 |
| Data Bus Width | 32 bit |
| No. of Bits | 32bit |
| Data Bus Width | 32bit |
| CPU Speed | 168MHz |
| Operating Frequency Max | 168MHz |
| Program Memory Size | 1MB |
| RAM Memory Size | 192KB |
| IC Case / Package | LQFP |
| No. of Pins | 100Pins |
| MCU Case Style | LQFP |
| No. of I/O's | 82I/O's |
| Interfaces | CAN, ENET, I2C, SPI, UART, USART, USB |
| Embedded Interface Type | CAN, ENET, I2C, SPI, UART, USART, USB |
| Supply Voltage Min | 1.8V |
| ADC Channels | 16Channels |
| ADC Resolution | 12Bit |
| Supply Voltage Max | 3.6V |
| MCU Family | STM32 |
| MCU Series | STM32F4 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| IC Mounting | Surface Mount |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | Philippines |
