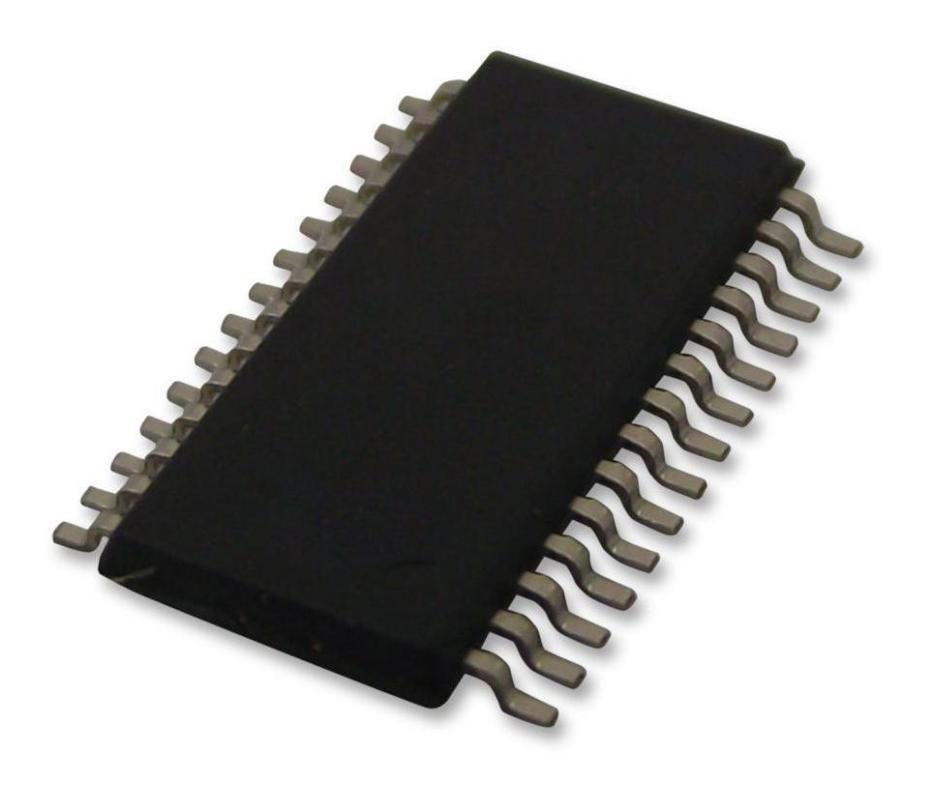

16 Bit I/O Expander with Serial Interface, I2C, Serial, 1.8V, 5.5V, SSOP - MCP23017-E/SS
16 Bit I/O Expander with Serial Interface, I2C, Serial, 1.8V, 5.5V, SSOP - MCP23017-E/SS
Couldn't load pickup availability
The MCP23017-E/SS is a 16-bit I/O Expander, provides general purpose parallel I/O expansion for I2C bus or SPI applications. The two devices differ only in the serial interface. It consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the Input port register can be inverted with the polarity inversion register. All registers can be read by the system master. The 16-bit I/O port functionally consists of two 8-bit ports (PORTA and PORTB). It can be configured to operate in the 8-bit or 16-bit modes via IOCON.BANK.
Features
- 16-bit Input/Output Port Expander with I2C™/Interrupt Output
- Cascadable for up to 8 Devices on One Bus
- 25mA Sink/Source Capability per I/O
- Supports 100, 400kHz and 1.7MHz
| Specifications | |
|---|---|
| Chip Configuration | 16bit |
| Bus Frequency | 1.7MHz |
| IC Interface Type | I2C, Serial |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 5.5V |
| Interface Case Style | SSOP |
| No. of Pins | 28Pins |
| No. of I/O's | 16I/O's |
| Product Range | MCP23017, MCP23S17 |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | United States |
