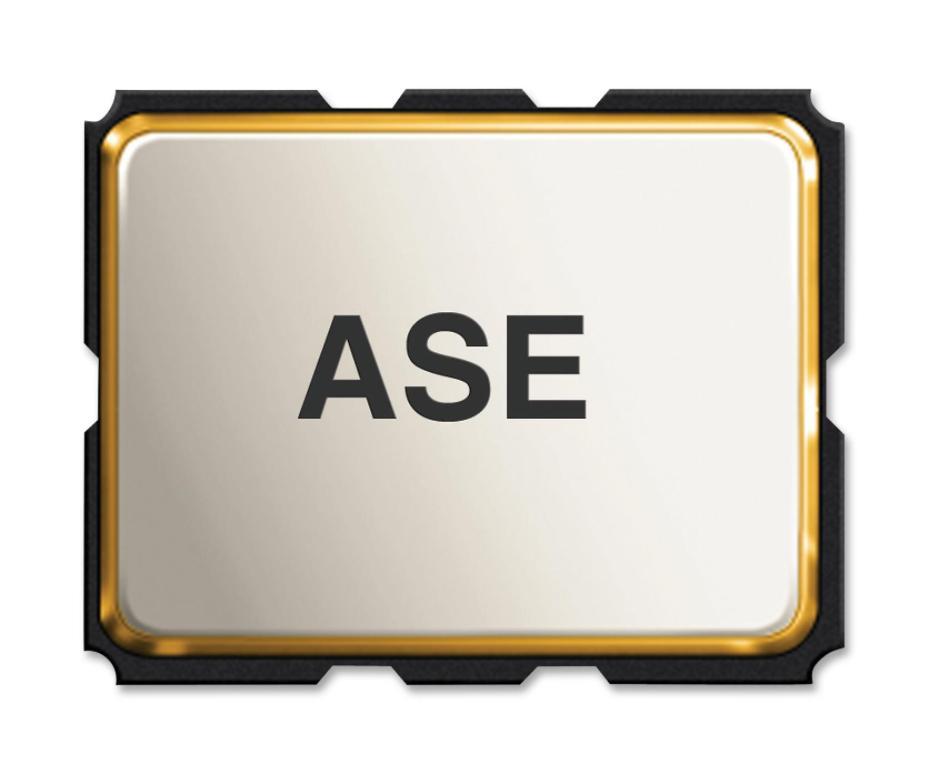

12MHz Oscillator, 50ppm, SMD, 3.2mm x 2.5mm, LVCMOS, 3.3V - ASE-12.000MHZ-LC-T

12MHz Oscillator, 50ppm, SMD, 3.2mm x 2.5mm, LVCMOS, 3.3V - ASE-12.000MHZ-LC-T

£2.89 GBP
£2.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The ASE series CMOS SMD Crystal Oscillator works at frequency range of 0.625 to 200MHz. It is suitable for use in CCD clock for VTR camera, equipment connected to PC or PC cards, PDA, wireless communication, laptop and SSD (Solid State Drive).

Features

  • 1.2mm Maximum low height
  • Tri-state function
  • Low current consumption 30mA maximum for 200MHz
  • 5ps Maximum low RMS jitter
  • Available for tight stability option
  • Moisture sensitivity level 1

Specifications
Frequency Nom 12MHz
Frequency Stability + / - 50ppm
Oscillator Case SMD, 3.2mm x 2.5mm
Supply Voltage Nom 3.3V
Product Range ASE Series
Operating Temperature Min -40°C
Operating Temperature Max 85°C
Oscillator Output Compatibility LVCMOS
Country of Origin: China

EAN:
Manufacturer Part Number:
