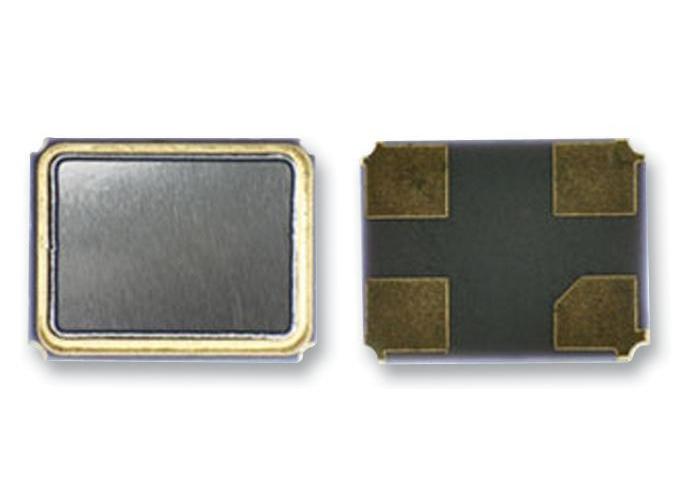

12MHz Crystal, SMD, 3.4mm x 2.7mm, 10ppm, 12pF - C3E-12.000-12-1010-X
12MHz Crystal, SMD, 3.4mm x 2.7mm, 10ppm, 12pF - C3E-12.000-12-1010-X
Regular price
£2.99 GBP
Regular price
Sale price
£2.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The C3E-12.000-12-1010-X is a 2.5 x 3.2mm 10ppm low profile surface-mount microprocessor Quartz Crystal Unit with metal cap and surface-mount seam sealed ceramic base. The C3E series crystal for use with the tire pressure monitoring system, ECU, sensor, GPS, airbag, multimedia, satellite radio and remote keyless entry systems applications.
Features
- Fundamental oscillation mode
- 100R Maximum equivalent series resistance
- 5pF Maximum shunt capacitance
- 100μW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
| Specifications | |
|---|---|
| Frequency Nom | 12MHz |
| Crystal Case | SMD, 3.4mm x 2.7mm |
| Frequency Stability + / - | 10ppm |
| Load Capacitance | 12pF |
| Frequency Tolerance + / - | 10ppm |
| Product Range | C3E Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Important Product Warning: | ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
